Metal Steel Coil Slitting Machine Line Manufacturers

Time:2020-05-29 14:24

Steel Coil Slitting Machine / Metal Coil Cutting Line

SINO POWER slitting is applicable to coils of various specifications. Slitting machine is used for cutting the metal coil into required narrow width. for the use of pipe welding or other punch line through the procedure of uncoiling, pre-leveling, shearing, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

This steel slitting machine is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting machine widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc. This steel slitter consists of loading cart, uncoiler, slitter, scrap winder, cropping shear, tension controller and coil recoiler, etc. Loop bridge, pinch and deviation corrector are equipped between each machine.

steel coil slitting machine flow chart

1. Technical Parameters

(Below are our standard models, we also accept customized. )

Model

SP0.2-1.5x1250
SP0.3-3.0x1600

SP1-6x2000
SP2-8x2000

SP3-12x2200
SP4-16x2200

Coil Material

SS / MS / GI/ PPGI /HR / CR /Aluminum /Copper

Thickness

0.2-1.5mm
0.3-3.0mm

1-6mm
2-8mm

3-12mm
4-16mm

Coil Width

800-1600mm

900-2000mm

900-2200mm

Coil Weight

≤20T

≤30T

≤35T

Decoil I.D

508mm,610mm,760mm

Recoil I.D

≤2000mm

≤2200mm

≤2200mm

Strip Width

≥20mm

≥30mm

≥40mm

Number of Strip

5-35

3-10

3-7

Slitting Accuracy

±0.03mm

±0.05mm

±0.05mm

Single Side Straightness

<0.3mm/min

<0.3mm/min

<0.3mm/min

Line Speed

0-120m/min

0-80m/min

0-40m/min

Electrical Control System

PLC automatic control

PLC automatic control

PLC automatic control


2: Whole Review

Whole Review

steel coil slitting machine whole review

Step 1: Uncoiler Section

Steel coil slitting machine decoiler

Step 2: Pre-Leveling Section

steel coil slitting machine pre leveling

Step 3: Slitting Section

steel coil slitting machine slitting



Step 4: Tension Section

steel coil slitting machine tension

Step 5:  Rewinding Section

steel coil slitting machine rewinding

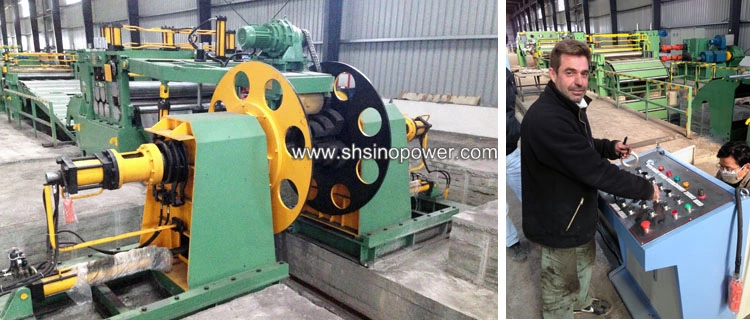

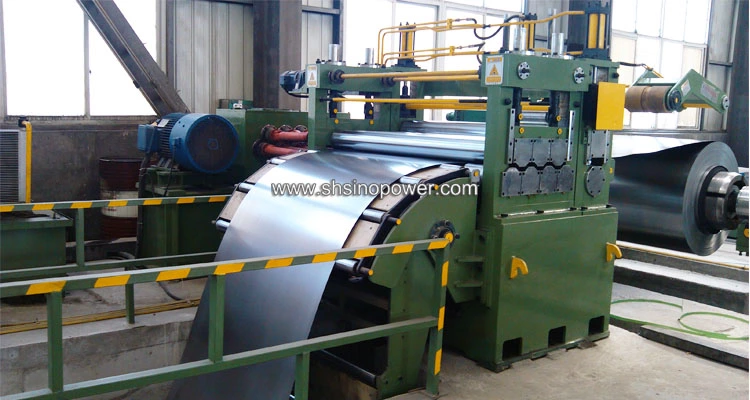

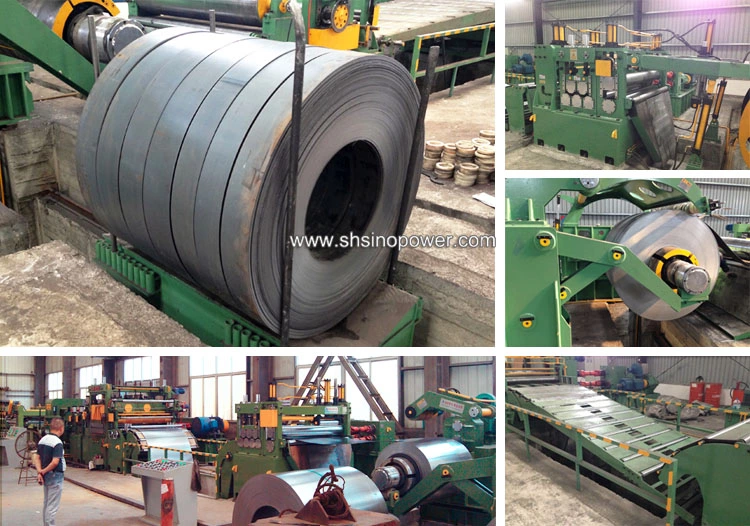

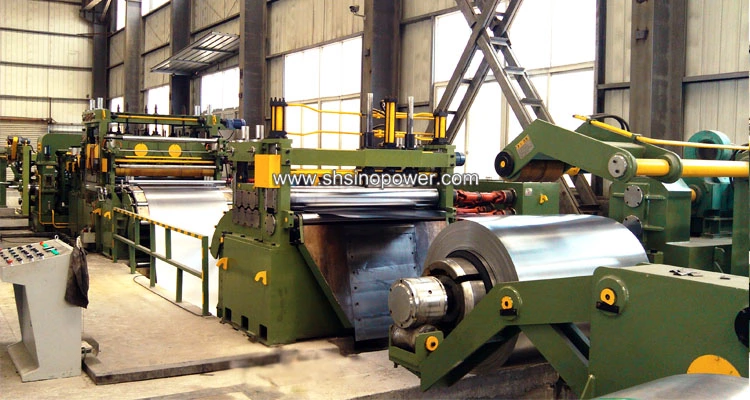

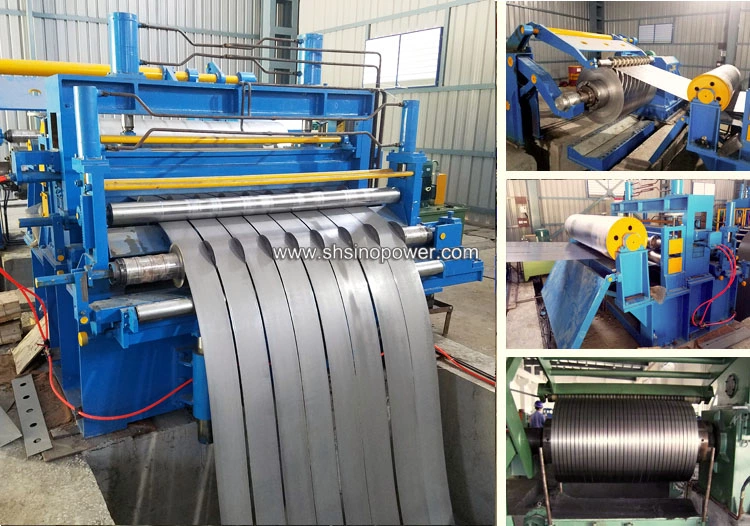

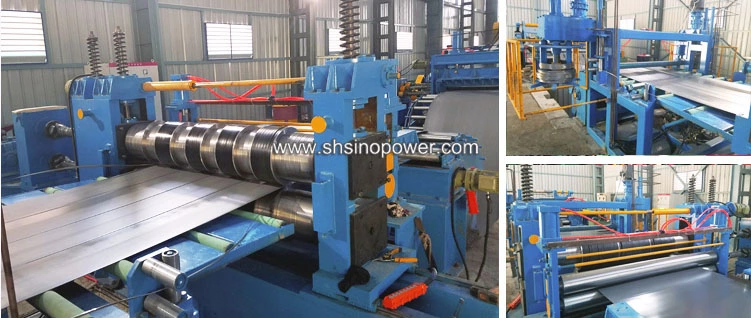

Machine At Site

steel coil slitting machine 01steel coil slitting machine 2

steel coil slitting machine 3

steel coil slitting machine 5



4. Final Product by Steel Coil Slitting Machine

steel coil slitting final product
