Metal Coil Slitting Machine

metal slitting line machine

Time：2020-05-29 14:04

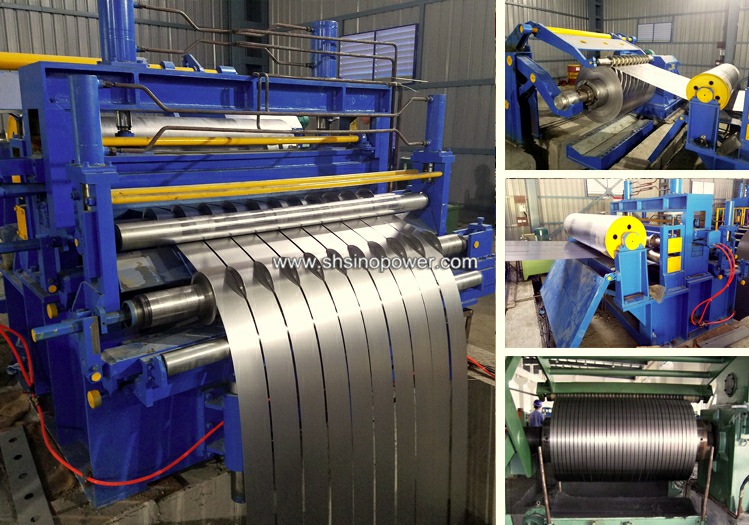

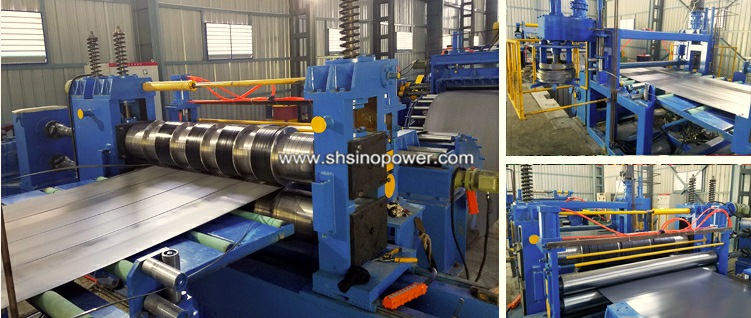

SP(0.2-2.0) Series nonferrous metal / Steel slitting line is applicable to coils of various specifications. It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

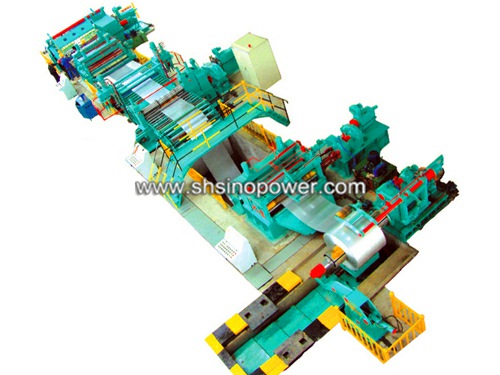

This slitting line machine is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting machine widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc. This metal slitting line consists of loading cart, uncoiler, slitter, scrap winder, cropping shear, tension controller and coil recoiler, etc. Loop bridge, pinch and deviation corrector are equipped between each machine. This steel coil slitting is a integration of mechanical, electrical, hydraulic and pneumatic technology.

1. Technical Parameters of metal slitting line

Model	Thickness	Coil Width	Coil Weight	Coil O.D	Coil O.D	Strip Width	Number of Strip	Slitting Accuracy	Line Speed	Coil Material
Model	mm	mm	tons	mm	mm	mm	pcs	mm	m/min	Coil Material
SP(0.2-2)	0.3-2.0	400-1600	≤20	508	≤2000	≥30	8~20	±0.15	0~150	δs≤230N/2, Cold-rolled Coil, Hot-rolled Coil, Stainless Coil, Galvanized Coil, Aluminum Coil, Copper Coil, etc
SP(0.3-3)	0.3-3.0	400-1600	≤20	508,610	≤2000	≥30	8~20	±0.15	0~120
SP(0.4-4)	0.4-4	500-2200	≤25	508,610,760	≤2200	≥30	8~20	±0.25	0~100
SP(1-6)	1-6	500-2200	≤25	508,610,760	≤2200	≥50	5~15	±0.25	0-80
SP(1-8)	2-8	500-2200	≤25	508,610,760	≤2200	≥50	5~12	±0.25	0-60
SP(2-10)	2-10	500-2200	≤35	508,610,760	≤2200	≥50	3~10	±0.5	0-60
SP(2-12)	2-12	500-2200	≤35	610,760,820	≤2200	≥80	3~10	±0.5	0-40
SP(3-14)	3-14	500-2200	≤35	610,760,820	≤2200	≥80	2~8	±0.1	0-40
SP(3-16)	3-16	500-2300	≤35	610,760,820	≤2500	≥100	2~8	±0.2	0-40
SP(5-20)	5-20	500-2300	≤35	610,760,820	≤2500	≥100	2~8	±0.2	0-20

2. Process Flow of slitting line machin

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control
