Metal Coil Slitting Machine

  • SP(5-20) steel slitting machine line for sale
SP(5-20) steel slitting machine line for sale

SP(5-20) steel slitting machine line for sale

  • Coil thickness: 5.0-20.0mm
  • Coil width:800-2300mm
  • Productin speed:0-20m/min
  • Pipe material: HR, CR,etc
  • Product description: SP(5-20) steel slitting machine line for sale is applicable to coils of various specifications with the thickness of 5-20mm and width 500-2300mm. steel slitting lines for sale can produce HR, CR, etc
  • INQUIRY

SP(5-20) Slitting and rewinding machine manufacturers suppliers is applicable to coils of various specifications. It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.
This steel slitting lines for sale is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting line for sale widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc. This slitting line for sale consists of loading cart, uncoiler, slitter, scrap winder, cropping shear, tension controller and coil recoiler, etc. Loop bridge, pinch and deviation corrector are equipped between each machine. This slitting machine for sale is a integration of mechanical, electrical, hydraulic and pneumatic technology.

1. Technical Parameters of steel slitting lines for sale

Model Thickness Coil Width Coil Weight Coil O.D Coil O.D Strip
Width
Number
of Strip
Slitting Accuracy Line Speed Coil Material
mm mm tons mm mm mm pcs mm m/min
SP(0.2-2) 0.3-2.0 400-1600 ≤20 508 ≤2000 ≥30 8~20 ±0.15 0~150 δs≤230N/2,
Cold-rolled Coil,
Hot-rolled Coil,
Stainless Coil,
Galvanized Coil,
Aluminum Coil,
Copper Coil,
etc
SP(0.3-3) 0.3-3.0 400-1600 ≤20 508,610 ≤2000 ≥30 8~20 ±0.15 0~120
SP(0.4-4) 0.4-4 500-2200 ≤25 508,610,760 ≤2200 ≥30 8~20 ±0.25 0~100
SP(1-6) 1-6 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~15 ±0.25 0-80
SP(1-8) 2-8 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~12 ±0.25 0-60
SP(2-10) 2-10 500-2200 ≤35 508,610,760 ≤2200 ≥50 3~10 ±0.5 0-60
SP(2-12) 2-12 500-2200 ≤35 610,760,820 ≤2200 ≥80 3~10 ±0.5 0-40
SP(3-14) 3-14 500-2200 ≤35 610,760,820 ≤2200 ≥80 2~8 ±0.1 0-40
SP(3-16) 3-16 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-40
SP(5-20) 5-20 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-20










2. Process Flow of slitting machine for sale

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

slitting line for sale, slitter machine


steel coil slitting machine line

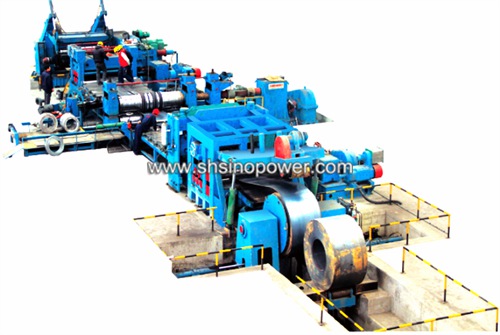

3. Photos of slitting machine for sale

slitting machine for sale,slitting line for sale,steel slitting lines for sale,

slitting machine for sale,slitting line for sale,steel slitting lines for sale,
