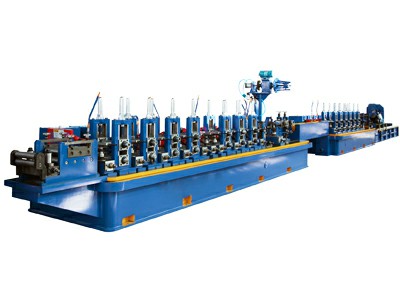

Steel Pipe Making Machine

SP50 Erw Pipe Mill For Sale

Pipe Size:19-76mm
Pipe Thickness:0.6-2.5mm
Production Speed:20-100mm
Pipe Material: Carbon Steel, Galvanized Steel, Mild Steel, Iron etc.
INQUIRY

ERW Pipe Mill / Pipe Mill for Sale

SP50 ERW pipe mill is for 19-76 mm diameters round pipe by 0.6-2.5 mm thickness ,15x15-60x60 mm square tube, 15x20-40x80 mm rectangular tube,the thickness is 0.6-2.0 mm of erw pipe mill for sale.

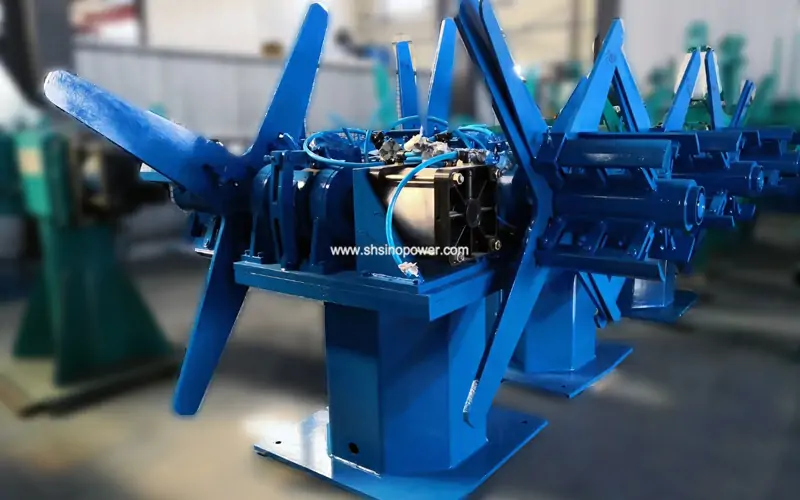

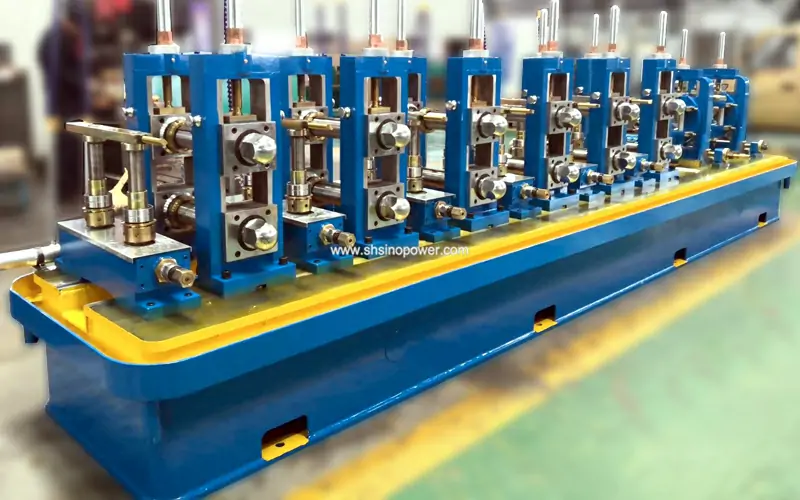

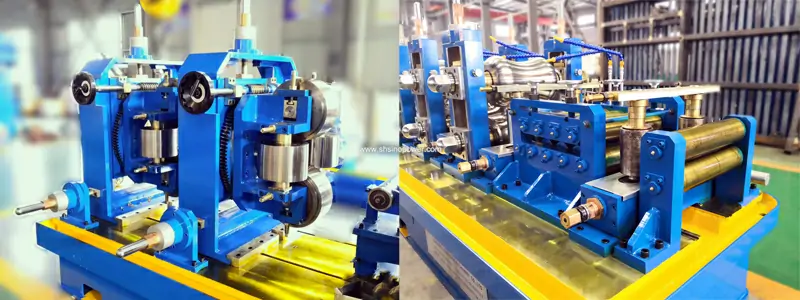

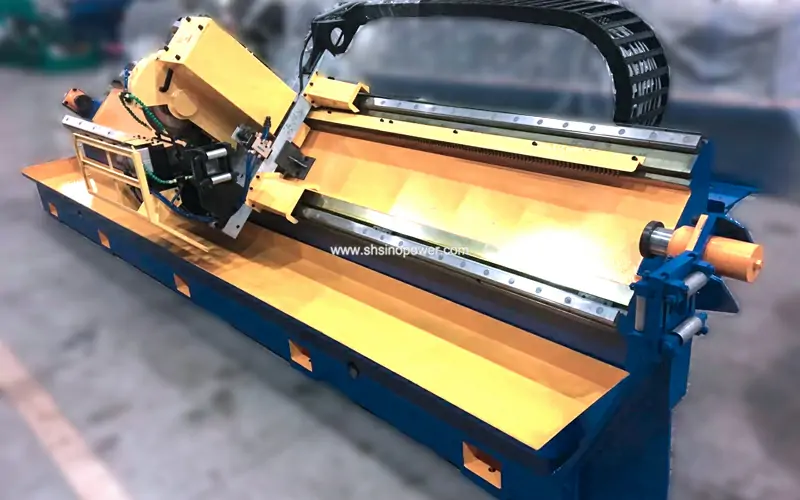

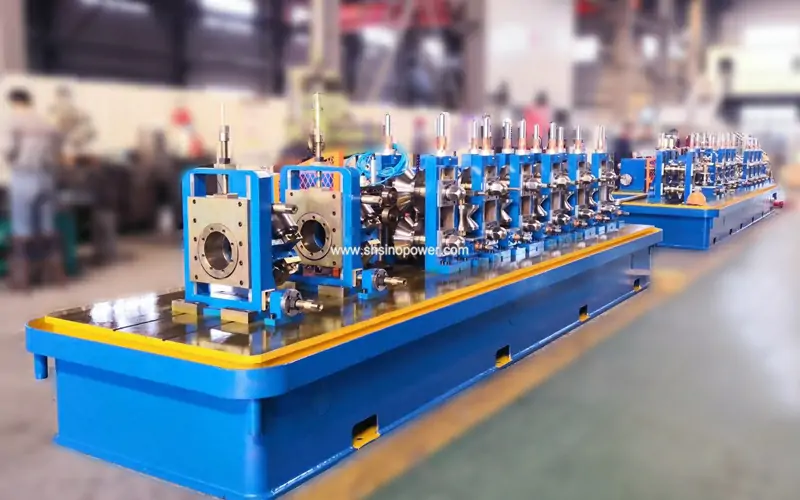

SP50 pipe mill is a series of erw pipe mill process that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The erw pipe mill for sale be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by erw pipe mill be cut to length and bundled.

Technical Parameters

Model		SP50	SP60	SP76
Round Tube	Diameter	19-76 mm	19-76 mm	25-90 mm
Round Tube	Thickness	0.6-2.5 mm	0.6-3.0 mm	1.0-4.0 mm
Square & Rectangle Tube	Max. Square Size	15x15-60x60 mm	15x15-60x60 mm	20x20-70x70 mm
	Max. Rectangle Size	15x20-40x80 mm	15x20-40x80 mm	20x30-60x80 mm
	Thickness	0.6-2.0 mm	0.6-2.5mm	1.0-3.0 mm
Speed		20-120 m/min	20-100m/min	20-80m/min
Major Motor Power		132KW	185 KW	110x2 KW
High Frequency Power		200 KW	250 KW	300 KW

ERW Pipe Mill Process

Final Pipes

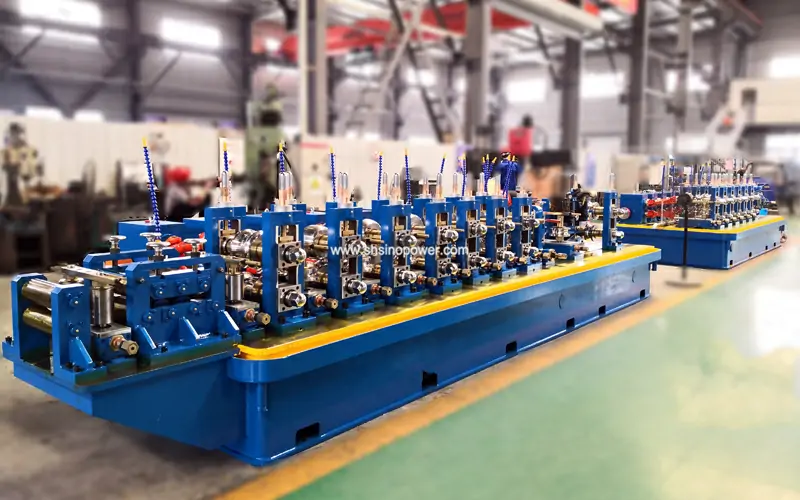

Whole Review

Standard Model List
of erw pipe mill,pipe mill,erw pipe mill for sale

Model	Round Pipe		Square Tube & Rectangle Tube			Speed m/min
Model	Diameter /mm	Thickness /mm	Square Tube /mm	Rectangle Tube /mm	Thickness /mm	Speed m/min
SP16	8 - 25	0.2 - 1.0	10x10 - 20x20	10x12 - 15x25	0.2 - 0.8	20 - 120
SP25	8 - 32	0.3 - 1.3	10x10 - 25x25	10x12 - 20x30	0.3 - 1.0	20 - 120
SP28	8 - 42	0.3 - 1.8	10x10 - 30x30	10x12 - 20x40	0.3 - 1.3	20 - 120
SP32	16 - 50	0.6 - 2.0	12x12 - 40x40	10x14 - 30x50	0.6 - 1.6	20 - 120
SP45	19 - 63	0.6 - 2.5	15x15 - 50x50	15x20- 40x60	0.6 - 2.0	20 - 120
SP50	19 - 76	0.6 - 2.5	15x15 - 60x60	15x20 - 40x80	0.6 - 2.0	20 - 100
SP60	19 - 76	0.6 - 3.0	15x15 - 60x60	15x20 - 40x80	0.6 - 2.5	20 - 100
SP76	25 - 90	1.0 - 4.0	20x20 - 70x70	20x30 - 60x80	1.0 - 3.0	20 - 70
SP90	32 - 114	1.5 - 4.5	25x25 - 90x90	20x30 -80x120	1.5 - 3.5	20 - 60
SP115	38 - 127	2.0 - 5.0	30x30 - 100x100	20x40 - 60x120	2.0 - 4.0	20 - 60
SP165	60 - 165	2.0 - 6.0	45x45 - 130x130	30x60 - 100x150	2.0 - 5.0	15 - 50
SP219	90 - 219	3.0 - 8.0	70x70 - 170x170	100x40 - 200x140	3.0 - 6.0	15 - 50
SP273	127 - 273	4.0 - 10.0	100x100 - 200x200	100x150 - 150x250	4.0 - 8.0	15 - 40
SP355	165 - 355	4.0 - 12.0	130x130 - 270x270	100x160 - 200x340	4.0 - 10.0	15 - 30
