Coil Laminating Machine

CLL1.2 Hot Melt Lamination Machine Coating Machine Roll To Roll Lamianator

Coil Thickness:0.2-1.2mm
Coil Width:500-2000mm
Production Speed:0-120m/min
Laminating Type:Continuously Laminating
INQUIRY

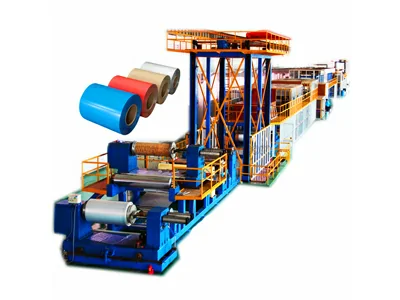

Roll To Roll Laminator / Hot Melt Lamination Machine

Roll to roll hot melt coating laminator machine is mainly used for the production of color coated coil for household appliances, building materials, packaging materials and other industries. The designedr hot melt lamination machine is mature and reliable, can meet the buyer’s stable production and long-term operation.

Final product

Final product produced by hot melt coating machine are as following:

Base Material: cold-rolled plate (already washed), GI, PPGI. Tin-plate,
Front side can be achieved: 1 coating, 1 baking, laminating with PVC, PET film + protective film fits,
Back side can be achieved: 1 coating, 1 baking. laminating with PVC, PET film.

Advantage

Roll to roll laminator adopts the new technology such as composite chemical conversion layer surface treatment technology, reverse roller coating, electric and AC digital transmission system, etc. The final product has smooth surface, high film adhesive strength and high yield as main features of the hot melt lamination machine.

Unique process configuration, easy to operate, short comissioning time.
High adaptability of film, glue, paint, domestic and foreign products can be used.
Roller of roll to roll laminator are adopt the unique design of the three-roll roller coater, You can use positive and negative roller coating on the glue processing, the glue thickness is uniform and stable.
The entire machine system adopts AC variable frequency drive, with perfect protection and self-diagnosis function, high precise speed and force control, stable and reliable production.
Hydraulic Pneumatic System Pumps, valves using domestic high quality products.
Unit automation according to the requirements of different users, hot melt coating machine can be connected with each transmission through the communication mode, with high degree of automation and reliable operation.
Pre-treatment agent can be purchased within country to reduce production costs.

Technical Parameters

Model	CLL1.2
Raw Material	Galvanized steel coil, Aluminum zinc coil, Aluminum coil, Tin plate
Film	PVC,PET,PE, Aluminum foil, Composite film
Coating	Polyester, silicon modified polyester, polyurethane, polyvinylidene fluoride, high polyester, epoxy, acrylic, PU/PA and the like.
Coil Thickness	0.2-1.2mm
Coil Width	800-2000mm
Raw Coil Weight	≤15 tons
Final Coil Weight	≤8 tons
Roll-Coating Process	Twin laminating on the front and back
Line Speed	0-120m/min, max canbe 300m/min
Thermal Sourse	Water, electric, natural gas or oil
Line capacity	Max 150,000 tons/year
Line Speed	0-120m/min, max canbe 300m/min
Electrical Control System	PLC automatic control

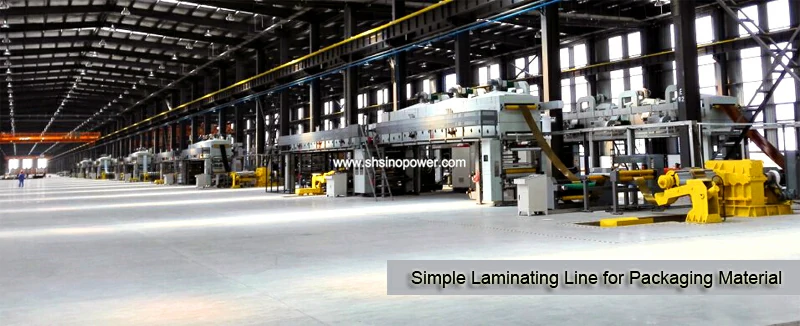

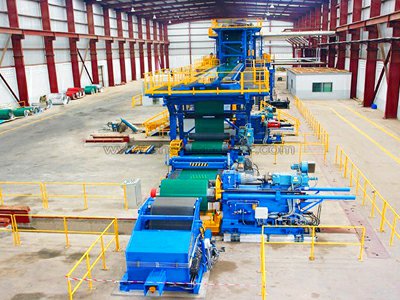

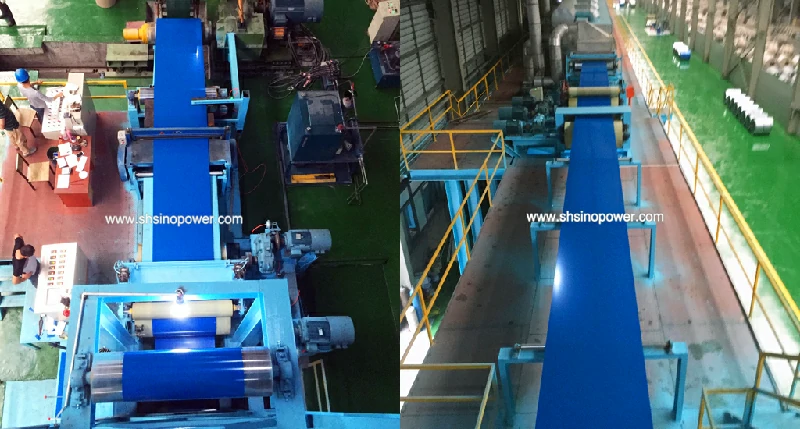

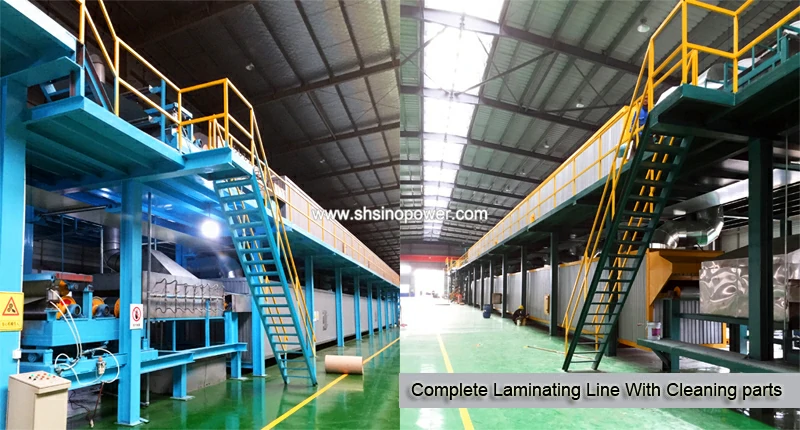

Whole Review

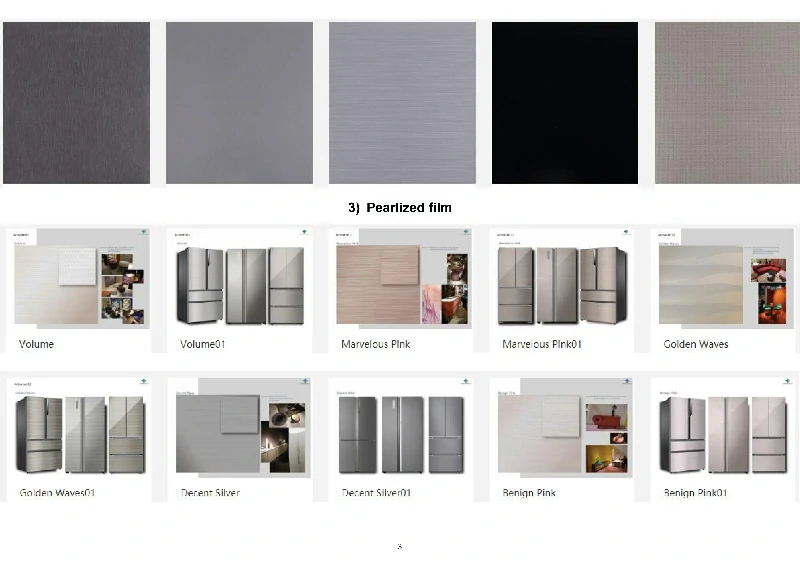

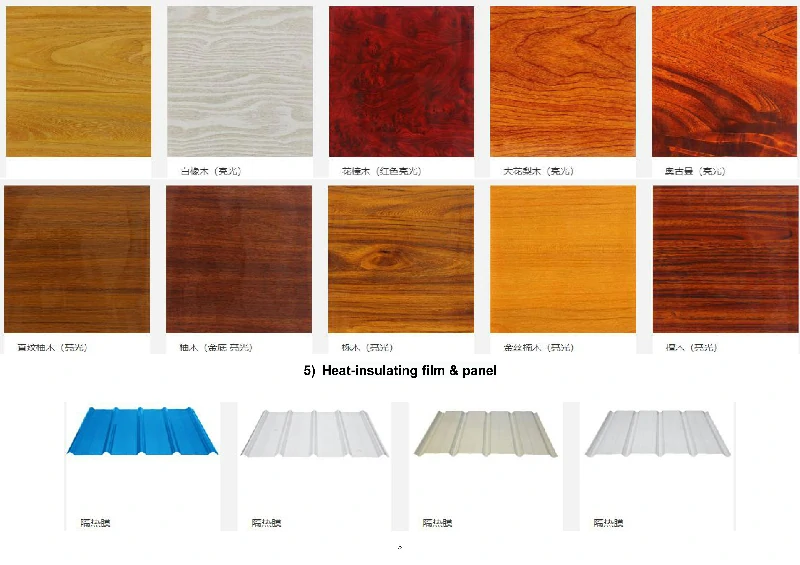

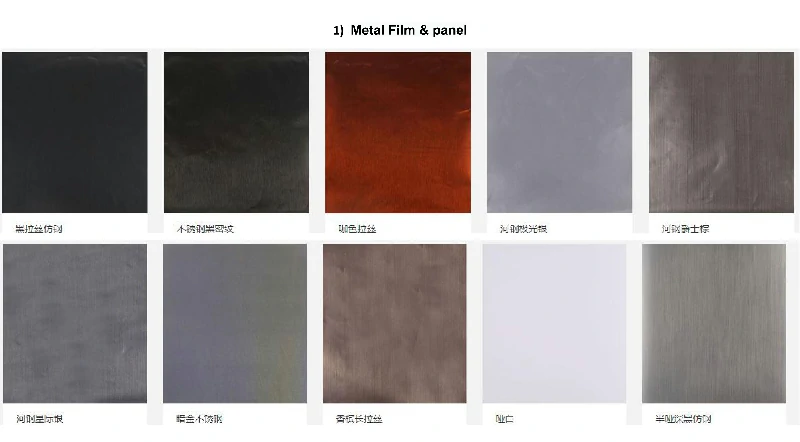

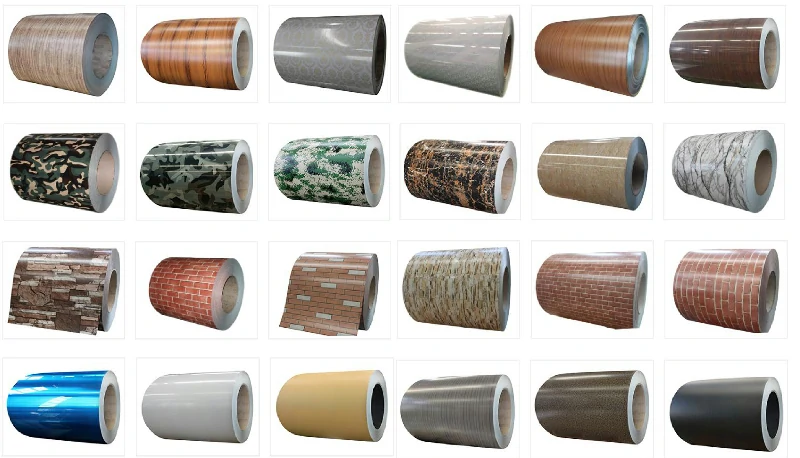

Laminated Products
roll to roll laminator,hot melt lamination machine,hot melt coating machine
