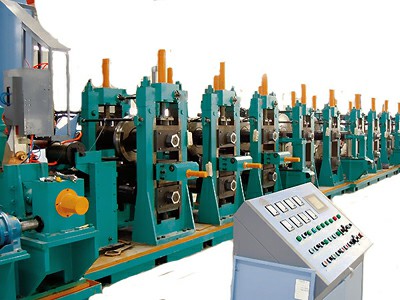

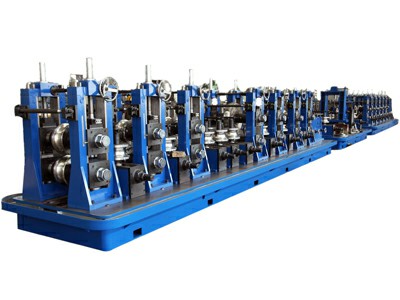

SP65 Square tube making machine manufacturers is a series of metal tube making machine that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The tube making machine manufactuers be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by square metal tube making machine be cut to length and bundled.
Model |
SP165 | SP217 | SP273 | |
Round Tube |
Diameter |
60-165 mm | 90-219 mm | 127-273 mm |
Thickness |
2.0-6.0 mm | 3.0-8.0 mm | 4.0-10.0 mm | |
Square & Rectangle |
Max. Square Size |
45x45-130x130 mm | 70x70-170x170 mm | 100x100-200x200 mm |
Max. Rectangle Size |
30x60-100x150 mm | 100x40-200x140 mm | 100x150-150x250 mm | |
Thickness |
2.0-5.0 mm | 3.0-6.0 mm | 4.0-8.0 mm | |
Speed |
15-50 m/min | 15-50 m/min | 15-40 m/min | |
Major Motor Power |
200x2 KW | 250x2 KW | 250+185x2 KW | |
High Frequency Power |
500 KW | 600 KW | 800 KW |
Standard Model List
of square tube making machine,tube making machine manufacturers,metal tube making machine
Model
|
Round Pipe
|
Square Tube & Rectangle Tube
|
Speed m/min |
|||
Diameter /mm |
Thickness /mm |
Square Tube /mm |
Rectangle Tube /mm |
Thickness /mm |
||
SP16 | 8 - 25 | 0.2 - 1.0 | 10x10 - 20x20 | 10x12 - 15x25 | 0.2 - 0.8 | 20 - 120 |
SP25 | 8 - 32 | 0.3 - 1.3 | 10x10 - 25x25 | 10x12 - 20x30 | 0.3 - 1.0 | 20 - 120 |
SP28 | 8 - 42 | 0.3 - 1.8 | 10x10 - 30x30 | 10x12 - 20x40 | 0.3 - 1.3 | 20 - 120 |
SP32 | 16 - 50 | 0.6 - 2.0 | 12x12 - 40x40 | 10x14 - 30x50 | 0.6 - 1.6 | 20 - 120 |
SP45 | 19 - 63 | 0.6 - 2.5 | 15x15 - 50x50 | 15x20- 40x60 | 0.6 - 2.0 | 20 - 120 |
SP50 | 19 - 76 | 0.6 - 2.5 | 15x15 - 60x60 | 15x20 - 40x80 | 0.6 - 2.0 | 20 - 100 |
SP60 | 19 - 76 | 0.6 - 3.0 | 15x15 - 60x60 | 15x20 - 40x80 | 0.6 - 2.5 | 20 - 100 |
SP76 | 25 - 90 | 1.0 - 4.0 | 20x20 - 70x70 | 20x30 - 60x80 | 1.0 - 3.0 | 20 - 80 |
SP90 | 32 - 114 | 1.5 - 4.5 | 25x25 - 90x90 | 20x30 -80x120 | 1.5 - 3.5 | 20 - 60 |
SP115 | 38 - 127 | 2.0 - 5.0 | 30x30 - 100x100 | 20x40 - 60x120 | 2.0 - 4.0 | 20 - 60 |
SP165 | 60 - 165 | 2.0 - 6.0 | 45x45 - 130x130 | 30x60 - 100x150 | 2.0 - 5.0 | 15 - 50 |
SP219 | 90 - 219 | 3.0 - 8.0 | 70x70 - 170x170 | 100x40 - 200x140 | 3.0 - 6.0 | 15 - 50 |
SP273 | 127 - 273 | 4.0 - 10.0 | 100x100 - 200x200 | 100x150 - 150x250 | 4.0 - 8.0 | 15 - 40 |
SP355 | 165 - 355 | 4.0 - 12.0 | 130x130 - 270x270 | 100x160 - 200x340 | 4.0 - 10.0 | 15 - 30 |
