Cut To Length Line

CTL3-12 Roller Cutting Machine Roll Cutting Machine Price

Coil Thickness:3-12mm
Coil Width:500-2200mm
Final Sheet Length:400-12000mm
Pipe Material: HR CR MS IRON etc
INQUIRY

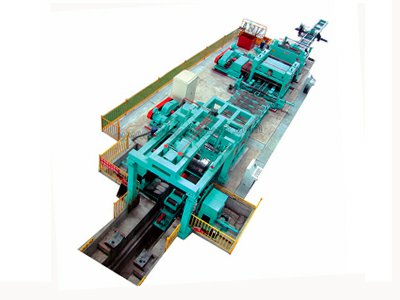

Roll Cutting Machine / Roller Cutting Machine

Roll cutting machine is applicable to coils of various specifications. Roller cutting machine is used for cutting the required width and length metal sheet palte from roll coil throught the procedure of uncoiler, slattening, sizing, cutting and packaging. Roll cutting machine price has advantages such as proper layout, easy operation, highly automated and production efficiency.

This kind of roll cutting machine consists of loading cut, uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, final leveler, servo length gauge, roller cutting machine shear, belt conveyor, reversal discharge, stacker, discharging cart, servo transmission system, hydraulic system, etc.

CTL0.3-3.0 roll cutting machine is applicable to coils of various specifications with the thickness of 0.3-3.0mm and width 500-2000mm. roller cutting machine price can produce HR CR PPGI GI AL CU.

Technical Parameters

Model	CTL3-12
Coil Material	HR / CR / SS / MS / BLACK STEEL / IRON
Coil Thickness	3-12mm
Coil Width	500-2200mm
Coil Weight	≤30T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2200mm
Final Sheet Length	400-12000mm
Line Speed	0-50m/min
Electrical Control System	PLC automatic control

Whole Review

Decoiler

Pre-leveler

4-Hi leveler

Recoiler

Cut to length line machine

Final Products
roll cutting machine,roller cutting machine,roll cutting machine price
