Cut To Length Line

SP5-20 Stainless Steel Sheet Metal Cut To Size

Coil Thickness:5-20mm
Coil Width:500-2200mm
Final Sheet Length:400-12000mm
Pipe Material: HR CR MS IRON etc
INQUIRY

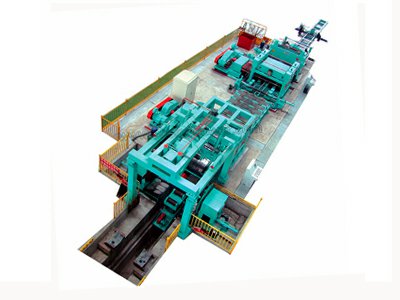

Sheet Metal Cut To Size / Steel Sheet Cut To Size

Steel sheet cut to size is applicable to coils of various specifications. sheet metal cut to size is used for cutting the required width and length metal sheet palte from roll coil throught the procedure of uncoiler, slattening, sizing, cutting and packaging. Stainless steel sheet cut to size has advantages such as proper layout, easy operation, highly automated and production efficiency.

This kind of sheet metal cut to size consists of loading cut, uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, final leveler, servo length gauge, steel sheet cut to size shear, belt conveyor, reversal discharge, stacker, discharging cart, servo transmission system, hydraulic system, etc.

CTL5-20 steel sheet cut to size is applicable to coils of various specifications with the thickness of 5-20mm and width 500-2500mm. stainless steel sheet cut to size can produce HR CR BLACK STEEL and IRON.

Technical Parameters

Model	CTL5-20
Coil Material	HR / CR / SS / MS / BLACK STEEL / IRON
Coil Thickness	5-20mm
Coil Width	500-2200mm
Coil Weight	≤35T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2500mm
Final Sheet Length	800-12000mm
Line Speed	0-30m/min
Electrical Control System	PLC automatic control

Whole Review

Decoiler

Pre-leveler

4-Hi leveler

Recoiler

Steel coil slitting line

Final Products
stainless steel sheet cut to size,sheet metal cut to size,steel sheet cut to size
