Steel Pipe Making Machine

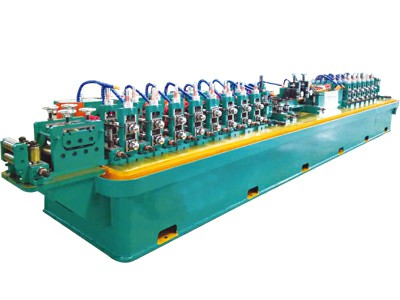

SP16 Steel Pipe Mill Manufacturers

  • Pipe Size:8-25mm
  • Pipe Thickness:0.2-1.0mm
  • Production Speed:20-120mm
  • Pipe Material: carbon steel, Galvanized steel, mild steel, iron etc.
  • INQUIRY

Steel Pipe Mill / Steel Pipe Mill Manufacturers

SP16 steel pipe mill is for 8-25 mm diameters round tube by 0.2-1.0mm thickness ,10x10 - 20x20 mm square tube, 10x12 - 15x25 mm rectangular tube,the thickness is 0.2-0.8mm of steel pipe mill manufacturers.

SP16 steel pipe mill is a series of pipe mill manufacturers process that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The steel pipe mill manufacturers be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by steel pipe mill be cut to length and bundled.

Technical Parameters

Model

SP16

SP25

SP28

Round Tube

Diameter

8-25 mm

8-32 mm

8-42 mm

Thickness

0.2-1.0 mm

0.3-1.3 mm

0.3-1.8 mm

Square & Rectangle
Tube

Max. Square Size

10x10 - 20x20 mm

10x10 - 25x25 mm

10x10 - 30x30 mm

Max. Rectangle Size

10x12 - 15x25 mm

10x12 - 20x30 mm

10x12 - 20x40 mm

Thickness

0.2-0.8 mm

0.3-1.0 mm

0.3-1.3 mm

Speed

20-120 m/min

20-120 m/min

20-120 m/min

Major Motor  Power

37 KW

45 KW

90 KW

High Frequency  Power

100 KW

100 KW

150 KW


Steel Pipe Mill Process


Final Pipes


Whole Review







Standard Model List
of steel pipe mill,steel pipe mill manufacturers,pipe mill manufacturers

Model
Round Pipe
Square Tube & Rectangle Tube
Speed
m/min
Diameter
/mm
Thickness
/mm
Square Tube
/mm
Rectangle Tube
/mm
Thickness
/mm
SP16 8 - 25 0.2 - 1.0 10x10 - 20x20 10x12 - 15x25 0.2 - 0.8 20 - 120
SP25 8 - 32 0.3 - 1.3 10x10 - 25x25 10x12 - 20x30 0.3 - 1.0 20 - 120
SP28 8 - 42 0.3 - 1.8 10x10 - 30x30 10x12 - 20x40 0.3 - 1.3 20 - 120
SP32  16 - 50 0.6 - 2.0 12x12 - 40x40 10x14 - 30x50 0.6 - 1.6 20 - 120
SP45 19 - 63 0.6 - 2.5 15x15 - 50x50 15x20- 40x60 0.6 - 2.0 20 - 120
SP50 19 - 76 0.6 - 2.5 15x15 - 60x60 15x20 - 40x80 0.6 - 2.0 20 - 100
SP60 19 - 76 0.6 - 3.0 15x15 - 60x60 15x20 - 40x80 0.6 - 2.5 20 - 100
SP76 25 - 90 1.0 - 4.0 20x20 - 70x70 20x30 - 60x80 1.0 - 3.0 20 - 70
SP90 32 - 114 1.5 - 4.5 25x25 - 90x90 20x30 -80x120 1.5 - 3.5 20 - 60
SP115 38 - 127 2.0 - 5.0 30x30 - 100x100 20x40 - 60x120 2.0 - 4.0 20 - 60
SP165 60 - 165 2.0 - 6.0 45x45 - 130x130 30x60 - 100x150 2.0 - 5.0 15 - 50
SP219 90 - 219 3.0 - 8.0 70x70 - 170x170 100x40 - 200x140 3.0 - 6.0 15 - 50
SP273 127 - 273 4.0 - 10.0 100x100 - 200x200 100x150 - 150x250 4.0 - 8.0 15 - 40
SP355 165 - 355 4.0 - 12.0 130x130 - 270x270 100x160 - 200x340 4.0 - 10.0 15 - 30
