Steel Pipe Making Machine

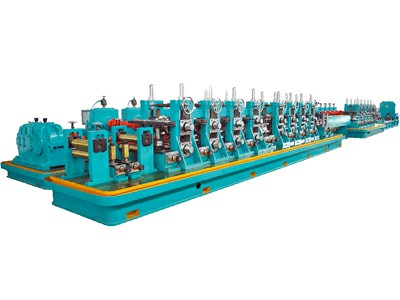

SP90 Steel Tube Making Machine Price

Pipe Size:32-127mm
Pipe Thickness:1.5-4.5mm
Production Speed:20-60mm
Pipe Material: Carbon Steel, Galvanized Steel, Mild Steel, Iron etc.
INQUIRY

Steel Tube Making Machine / Tube Making Machine Price

SP90 steel tube making machine is for 32-114 mm diameters round pipe by 1.5-4.5 mm thickness ,25x25 - 90x90 mm square tube, 20x30 -80x120 mm rectangular tube,the thickness is 1.5-3.5 mm of tube making machine price.

SP90 steel tube making machine is a series of tube making machine price that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The steel tube making machine be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by tube making machine price be cut to length and bundled.

Technical Parameters

Model		SP60	SP76	SP90
Round Tube	Diameter	19-76 mm	25-90 mm	32-114 mm
Round Tube	Thickness	0.6-3.0 mm	1.0-4.0 mm	1.5-4.5 mm
Square & Rectangle Tube	Max. Square Size	15x15-60x60 mm	20x20-70x70 mm	25x25-90x90 mm
	Max. Rectangle Size	15x20-40x80 mm	20x30-60x80 mm	20x30-80x120 mm
	Thickness	0.6-2.5mm	1.0-3.0 mm	1.5-3.5 mm
Speed		20-100m/min	20-80m/min	20-60 m/min
Major Motor Power		185 KW	110x2 KW	132x2 KW
High Frequency Power		250 KW	300 KW	400KW

Steel Tube Making Machine Process

Final Pipes

Whole Review

Standard Model List
of steel tube making machine,tube making machine,tube making machine price

Model	Round Pipe		Square Tube & Rectangle Tube			Speed m/min
Model	Diameter /mm	Thickness /mm	Square Tube /mm	Rectangle Tube /mm	Thickness /mm	Speed m/min
SP16	8 - 25	0.2 - 1.0	10x10 - 20x20	10x12 - 15x25	0.2 - 0.8	20 - 120
SP25	8 - 32	0.3 - 1.3	10x10 - 25x25	10x12 - 20x30	0.3 - 1.0	20 - 120
SP28	8 - 42	0.3 - 1.8	10x10 - 30x30	10x12 - 20x40	0.3 - 1.3	20 - 120
SP32	16 - 50	0.6 - 2.0	12x12 - 40x40	10x14 - 30x50	0.6 - 1.6	20 - 120
SP45	19 - 63	0.6 - 2.5	15x15 - 50x50	15x20- 40x60	0.6 - 2.0	20 - 120
SP50	19 - 76	0.6 - 2.5	15x15 - 60x60	15x20 - 40x80	0.6 - 2.0	20 - 100
SP60	19 - 76	0.6 - 3.0	15x15 - 60x60	15x20 - 40x80	0.6 - 2.5	20 - 100
SP76	25 - 90	1.0 - 4.0	20x20 - 70x70	20x30 - 60x80	1.0 - 3.0	20 - 80
SP90	32 - 114	1.5 - 4.5	25x25 - 90x90	20x30 -80x120	1.5 - 3.5	20 - 60
SP115	38 - 127	2.0 - 5.0	30x30 - 100x100	20x40 - 60x120	2.0 - 4.0	20 - 60
SP165	60 - 165	2.0 - 6.0	45x45 - 130x130	30x60 - 100x150	2.0 - 5.0	15 - 50
SP219	90 - 219	3.0 - 8.0	70x70 - 170x170	100x40 - 200x140	3.0 - 6.0	15 - 50
SP273	127 - 273	4.0 - 10.0	100x100 - 200x200	100x150 - 150x250	4.0 - 8.0	15 - 40
SP355	165 - 355	4.0 - 12.0	130x130 - 270x270	100x160 - 200x340	4.0 - 10.0	15 - 30
