  • SP6 Full-automatic stainless steel metal sheet cut to size
SP6 Full-automatic stainless steel metal sheet cut to size

SP6 Full-automatic stainless steel metal sheet cut to size

  • Coil thickness: 1.0-6.0mm
  • Coil width:400-2200mm
  • Productin speed:20-80m/min
  • Pipe material: HR, CR, PPGI, GI,AL,CU,etc
  • Product description: Full-automatic stainless steel metal sheet cut to size is for HR coil(1-6mm) such as cold-rolled coil,hot-rolled coil,stainless coil,galvanized coil,Al,Cu,etc from steel cut to length, cut to length,
  • INQUIRY

Full-automatic stainless steel metal sheet cut to size is applicable to coils of various specifications. the machine produced by cut to length line machine is used for the producing flattened steel sheet cut to size steel plate through the procedure of uncoiling, flattening and cutting to required width and length.

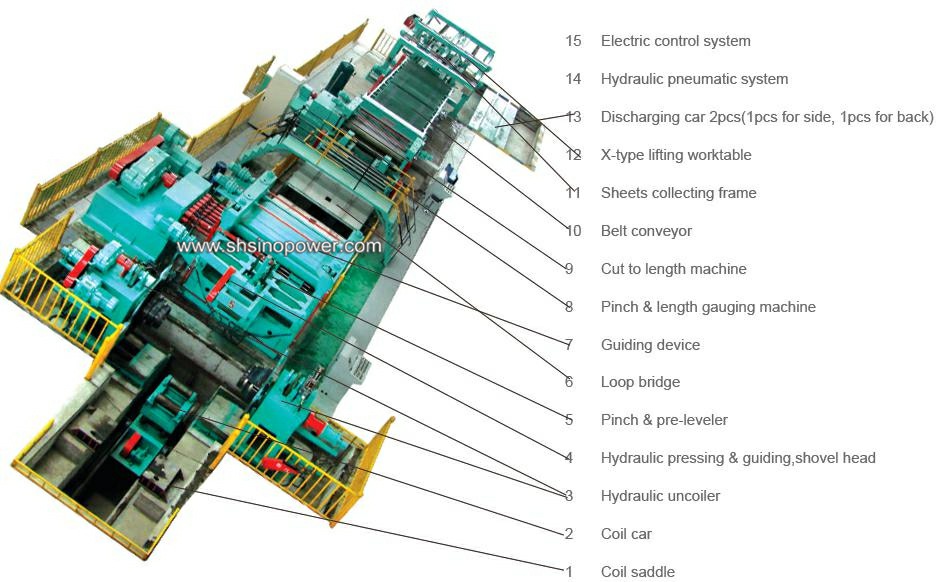

This metal cut to size consists of loading cut, single pivot uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, fine leveler, servo length gauge, metal sheets cut to size shear, belt conveyor, reversal discharger, stacker, discharging cart, servo transmission system, hydraulic system, etc.


1. Technical Parameters of metal cut to size

Name\Model 3×1600 6×1600 8×2000 10×2200 12×2200 16×2200 20×2500 25×2500
Coil Material δs≤230N/mm2,Cold-rolled Coil,Hot-rolled Coil,Stainless Coil,Galvanized Coil,Al, Cu.
Coil Thickness(mm) 0.5-3 1-6 2-8 2-10 3-12 4-16 6-20 8-25
Coil Width(mm) 1600 2000 2000 2200 2200 2200 2500 2500
Length Range(mm) 500-4000 1000-6000 1000-8000 1000-10000 1000-12000 1000-12000 1000-12000 1000-12000
Cutting Length Precision(mm) ±0.5 ±0.5 ±1 ±1 ±1 ±1 ±1 ±1
Leveler Roll No. 15 15 13 13 11 11 9 9
Roller Dia(mm) Ф100 Ф140 Ф155 Ф160 Ф180 Ф200 Ф230 Ф260

2. Process Flow of metal sheets cut to size

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

cut to length line

metal cut to size,metal sheets cut to size,steel sheet cut to size,stainless steel cut to size,

3. Photos of steel sheet cut to size

Main Machine 1: Uncoileruncoiling uncoiler

Main Machine 2:  Leveling machineleveling leveler

Main Machine 3: stainless steel cut to sizecut to length line

Main Machine 4:  Stroage machine

Workshop of stainless steel cut to sizemetal cut to size,metal sheets cut to size,steel sheet cut to size,stainless steel cut to size,

metal cut to size,metal sheets cut to size,steel sheet cut to size,stainless steel cut to size,

4. Final product by stainless steel metal sheet cut to size

copper plate                         carbon steel plate                       aluminum plate                         stainless steel plate

cut to length product

metal cut to size,metal sheets cut to size,steel sheet cut to size,stainless steel cut to size,
