Cut to Length Line

  • SP12 sheet metal cut to length
SP12 sheet metal cut to length

SP12 sheet metal cut to length

  • Coil thickness: 3-12mm
  • Coil width:400-2200mm
  • Productin speed:20-60m/min
  • Pipe material: HR, CR, PPGI, GI,AL,CU,etc
  • Product description: HR/pickling plate cut to length machine manufacturers is for HR coil(3-12mm) such as cold-rolled coil,hot-rolled coil,stainless coil,galvanized coil,Al,Cu,etc from metal cut to length.
  • INQUIRY

HR/pickling plate sheet metal cut to length is applicable to coils of various specifications. the cut to length metal produced by length cutting machine is used for the producing flattened cut to steel plate through the procedure of uncoiling, flattening and cutting to required width and length.

This cutting machine consists of loading cut, single pivot uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, fine leveler, servo length gauge, sheet metal cut to length shear, belt conveyor, reversal discharger, stacker, discharging cart, servo transmission system, hydraulic system, etc.


1. Technical Parameters

Name\Model 3×1600 6×1600 8×2000 10×2200 12×2200 16×2200 20×2500 25×2500
Coil Material δs≤230N/mm2,Cold-rolled Coil,Hot-rolled Coil,Stainless Coil,Galvanized Coil,Al, Cu.
Coil Thickness(mm) 0.5-3 1-6 2-8 2-10 3-12 4-16 6-20 8-25
Coil Width(mm) 1600 2000 2000 2200 2200 2200 2500 2500
Length Range(mm) 500-4000 1000-6000 1000-8000 1000-10000 1000-12000 1000-12000 1000-12000 1000-12000
Cutting Length Precision(mm) ±0.5 ±0.5 ±1 ±1 ±1 ±1 ±1 ±1
Leveler Roll No. 15 15 13 13 11 11 9 9
Roller Dia(mm) Ф100 Ф140 Ф155 Ф160 Ф180 Ф200 Ф230 Ф260

2. Process Flow

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

cut to length line


3. Photos of sheet metal cut to length

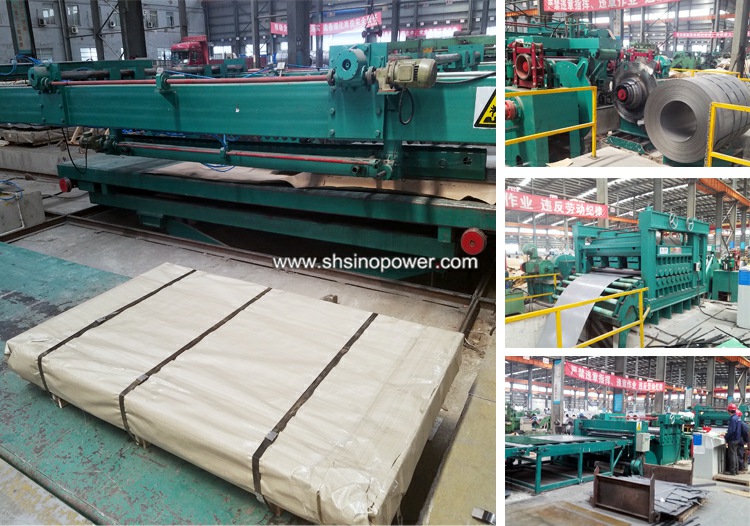

Main Machine 1: Uncoileruncoiling uncoiler

Main Machine 2:  Leveling machineleveling leveler

Main Machine 3: cut to length metalcut to length line

Main Machine 4:  Stroage machine

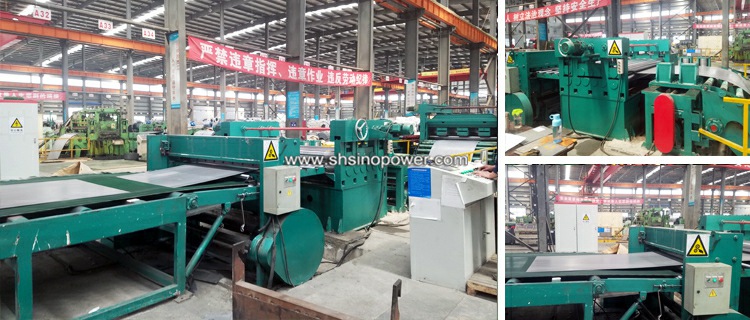

Workshop of whole sheet metal cut to length

metal cut to size,metal sheets cut to size,steel sheet cut to size,stainless steel cut to size,

metal cut to size,metal sheets cut to size,steel sheet cut to size,stainless steel cut to size,

4. Final product by sheet metal cut to length metal

copper plate                         carbon steel plate                       aluminum plate                         stainless steel plate

cut to length product

sheet metal cut to length metal
