Steel Pipe Making Machine

SP50 Steel tube making machine price

Time:2020-05-29 14:17

SP50 (diameters 19-63 mm, 50x50mm) steel tube making machine price is a series of steel tube making machine that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. The round tube machine. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The tube machine be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled.

1. Parameters of steel tube machine

Model Unit SP32L SP50 SP50L SP60
Diameter of Welded Tubes mm 16-63 19-63 19-76 21-76
Size of Square Tube (Max.) mm 50x50 50x50 60x60 60x60
Size of Rectangle Tube (Max.) mm 40x60 40x60 40x80 40x60
Wall Thickness of Round Tube mm 0.6-2.0 0.8-2.5 0.8-2.5 1.0-3.2
Wall Thickness of Square  Tube mm 0.6-1.5 0.8-2.0 0.8-2.0 1.0-2.5
Wall Thickness of Rectangle Tube mm 0.6-1.5 0.8-2.0 0.8-2.0 1.0-2.5
Speed of Tube Welding m/min 20-90 20-90 20-90 20-80
Power of Major Motor KW 110 132 160 185
High Frequency Power KW 150 150 200 200

2. Process flow of tube machine

pipe making machine, pipe welding machine

Step 1: Uncoiler
Function: support rolled plate and strip tension for steel tube making machine, by the frame, main shaft, increases of drum, brake.
There are 3 types: pneumatic, hydraulic and manual.
decoiler uncoiler unwinding of erw pipe mill
Step 2: Shear & Butt-welding

Function: Shear the end of each strip coil, then welding them together, so that tube machinecan be continue production.
2 Types: Automatic & Manual
head shear and welder for pipe making machine
Step 3: Strip Accumulator

Function: storage strip to keep tube machine continue production.

2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.
vertical accumulator horizontal accumulator
Step 4: Forming Section

Function: forming the tube from strip

Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor
forming section of steel pipe mill
Step 5: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the steel tube machine welder
Our advantage: We choose the China best welder: Sanyi brand.
high frequency welding station for steel pipe machine
Step 6: Sizing Section

Function: sizing the tube machine to precise size

Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size
sizing parts for erw tube mill
Step 7: Flying saw / Cold Saw

Function: cutting the tube machine to right length.

Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.
fly saw cold saw and cutting saw
Step 8: Run Out Table.

Function: run out the pipe, packing the pipe for steel tube making machine price
Type: Automatic or manual
run out table for tube making machine package


3. Applications of tube machine

1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe

4. Photos of steel tube making machine

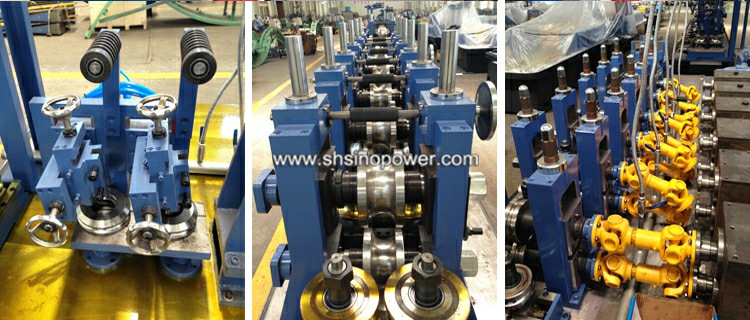

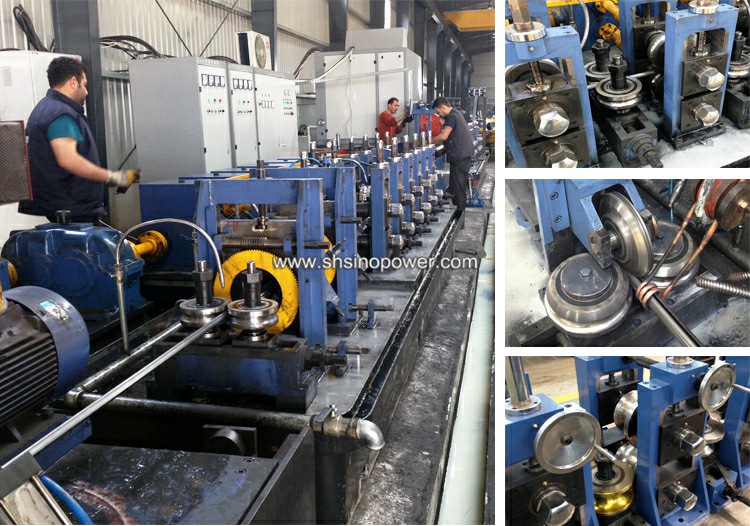

tube machine,tube making machine,steel tube making machine,tube making machine price,
tube mill,tube mill machine,erw tube mill,

5. Final product of steel tube machine

Material:  carbon steel, galvanized steel pipe, mild steel, iron, black steel, ms steel, etc.
welding pipe welded tube

6. Whole series of steel tube making machine

Options of tube machine and tube making machine price
steel square pipe making machine,erw pipe making machine
