Slitting Machine

SP5-20 Slitter Machine Manufacturers Steel For Sales

Coil Thickness:5-20mm
Coil Width:500-2200mm
Production Speed:0-30m/min
Pipe Material: HR CR PPGI GI etc
INQUIRY

Slitter Machine Manufacturers / Slitter Machine for Sale

Slitter machine for sale is applicable to coils of various specifications. Slitter machine steel is used for cutting metal coil into required narrow width, for the use of pipe welding or other punch line, through the procedure of decoiler, pre-leveller, shear, slitting and recoiler. Sslitter machine manufacturers has advantages such as proper layout, easy operation, highly automated and high production efficiency.

This kind of slitter machine for sale is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless steel coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitter machine steel widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc.

SP5-20 slitter machine for sale is applicable to coils of various specifications with the thickness of 5-20mm and width 500-2200mm. slitter machine manufacturers can produce HR CR PPGI GI AL CU.

Technical Parameters

Model	SP5-20
Coil Material	HR / CR / SS / MS / IRON / BLACK STEEL
Coil Thickness	5-20mm
Coil Width	800-2200mm
Coil Weight	≤40T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2000mm
Strip Width	≥50mm
Number of Strip	5-15 slits
Slitting Accuracy	±0.05mm
Line Speed	0-30m/min
Electrical Control System	PLC automatic control

Whole Review

Decoiler

Pre-leveler

Slitter

Recoiler

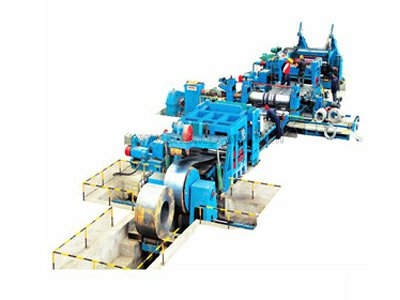

Steel coil slitting line

Final Products
Slitter machine manufacturers,slitter machine for sale,slitter machine steel
