Slitting Machine

SP0.3-3.0 Steel Coil Slitting Line

Coil Thickness:0.3-3.0mm
Coil Width:500-2000mm
Production Speed:0-120m/min
Pipe Material: HR CR PPGI GI AL CU etc
INQUIRY

Steel Coil Slitting Line / Steel Slitting Line

Steel coil slitting line is applicable to coils of various specifications. Steel slitting line is used for cutting metal coil into required narrow width, for the use of pipe welding or other punch line, through the procedure of decoiler, pre-leveller, shear, slitting and recoiler. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

This kind of coil slitting line is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless steel coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting line widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc.

SP0.3-3.0 Steel Coil Slitting Line is applicable to coils of various specifications with the thickness of 0.3-3.0mm and width 500-2000mm. Coil slitting line can produce HR CR PPGI GI AL CU.

Technical Parameters

Model	SP0.3-3.0
Coil Material	SS / MS / GI / PPGI / HR / CR / Aluminum /Copper
Coil Thickness	0.3-3.0mm
Coil Width	800-1600mm
Coil Weight	≤20T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2000mm
Strip Width	≥20mm
Number of Strip	5-35 slits
Slitting Accuracy	±0.03mm
Line Speed	0-120m/min
Electrical Control System	PLC automatic control

Whole Review

Decoiler

Pre-leveler

Slitter

Recoiler

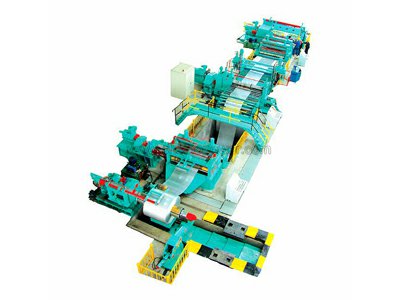

Steel coil slitting line

Final Products
