Slitting Machine

SP2-8 Slitting Line Machine Manufacturers

Coil Thickness:2-8mm
Coil Width:500-2200mm
Production Speed:0-60m/min
Pipe Material: HR CR PPGI GI etc
INQUIRY

Slitting Line Machine / Slitting Line Manufacturers

Slitting line machine is applicable to coils of various specifications. Slitting line is used for cutting metal coil into required narrow width, for the use of pipe welding or other punch line, through the procedure of decoiler, pre-leveller, shear, slitting and recoiler. Slitting line manufacturers has advantages such as proper layout, easy operation, highly automated and high production efficiency.

This kind of slitting line machine is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless steel coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting line widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc.

SP2-8 slitting line machine is applicable to coils of various specifications with the thickness of 2-8mm and width 500-2200mm. slitting line manufacturers can produce HR CR PPGI GI AL CU.

Technical Parameters

Model	SP2-8
Coil Material	SS / MS / GI / PPGI / HR / CR
Coil Thickness	2-8mm
Coil Width	800-2200mm
Coil Weight	≤35T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2200mm
Strip Width	≥50mm
Number of Strip	5-25 slits
Slitting Accuracy	±0.05mm
Line Speed	0-80m/min
Electrical Control System	PLC automatic control

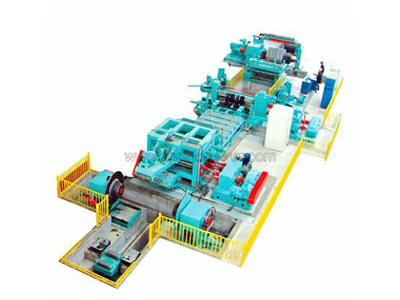

Whole Review

Decoiler

Pre-leveler

Slitter

Recoiler

Steel coil slitting line

Final Products

slitting line machine,slitting line,slitting line manufacturers
