Steel Pipe Making Machine

SP32 Steel Pipe Making Pipe Machine Price

Pipe Size:16-50mm
Pipe Thickness:0.6-2.0mm
Production Speed:20-100mm
Pipe Material: Carbon Steel, Galvanized Steel, Mild Steel, Iron etc.
INQUIRY

Steel Pipe Machine / Pipe Making Machine Price

SP32 steel pipe machine is for 16-50 mm diameters round tube by 0.6-2.0 mm thickness ,12x12-40x40 mm square tube, 10x14-30x50 mm rectangular tube,the thickness is 0.6-1.6mm of steel pipe making.

SP32 pipe machine price is a series of steel pipe machine process that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The pipe machine price be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by steel pipe machine be cut to length and bundled.

Technical Parameters

Model		SP28	SP32	SP45
Round Tube	Diameter	8-42 mm	16-50mm	19-63 mm
Round Tube	Thickness	0.3-1.8 mm	0.6-2.0 mm	0.6-2.5 mm
Square & Rectangle Tube	Max. Square Size	10x10-30x30 mm	12x12-40x40 mm	15x15-50x50 mm
	Max. Rectangle Size	10x12-20x40 mm	10x14-30x50 mm	15x20-40x60 mm
	Thickness	0.3-1.3 mm	0.6-1.6 mm	0.6-2.0 mm
Speed		20-120 m/min	20-120m/min	20-120m/min
Major Motor Power		90 KW	132 KW	132 KW
High Frequency Power		150 KW	150 KW	200 KW

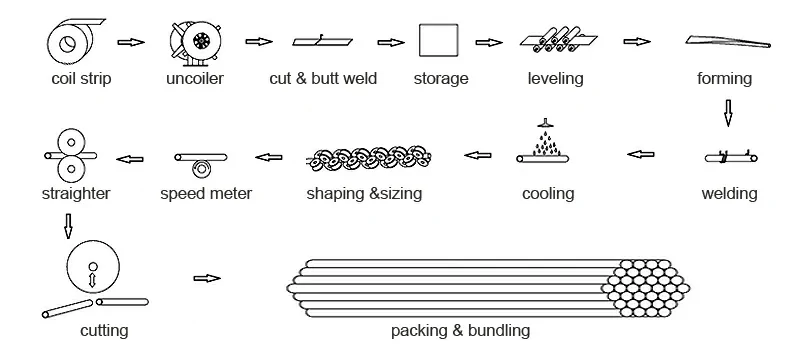

Steel Pipe Making Process

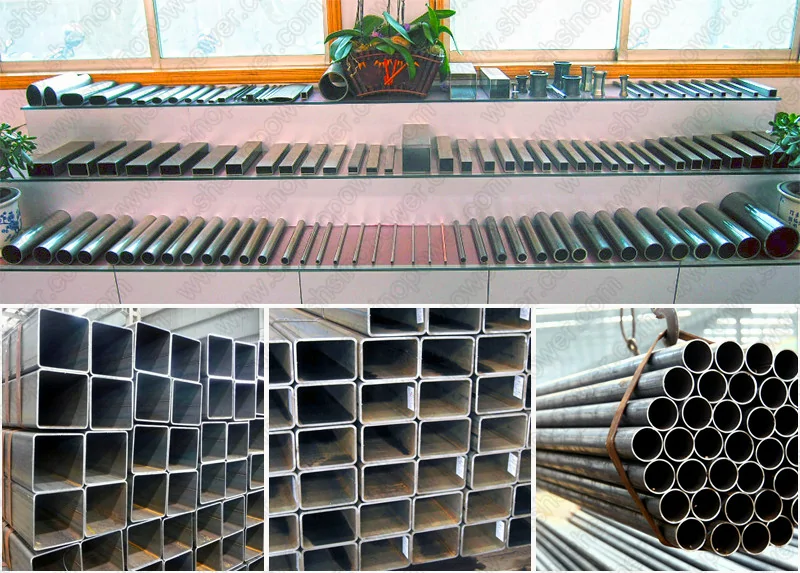

Final Pipes

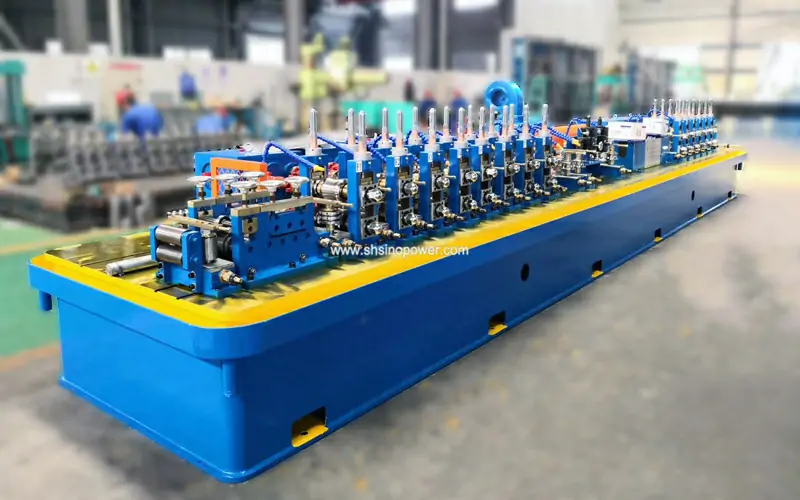

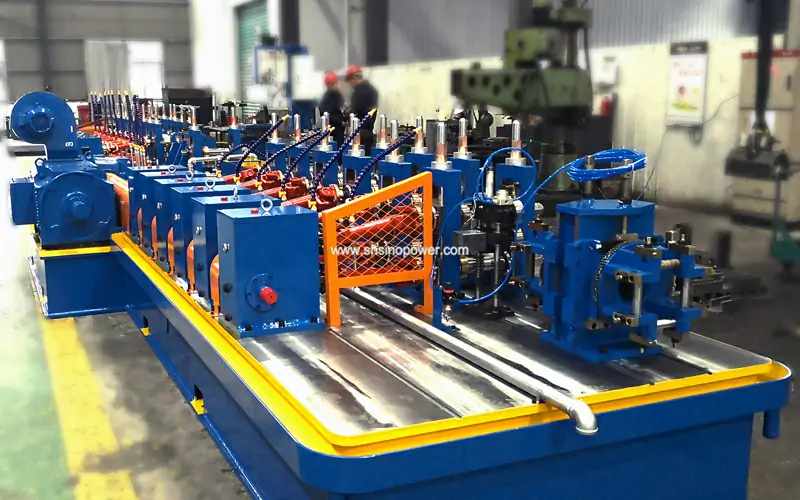

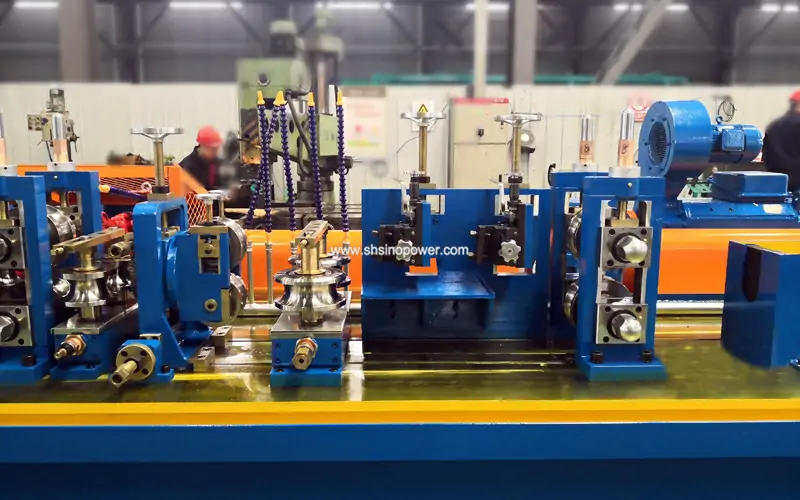

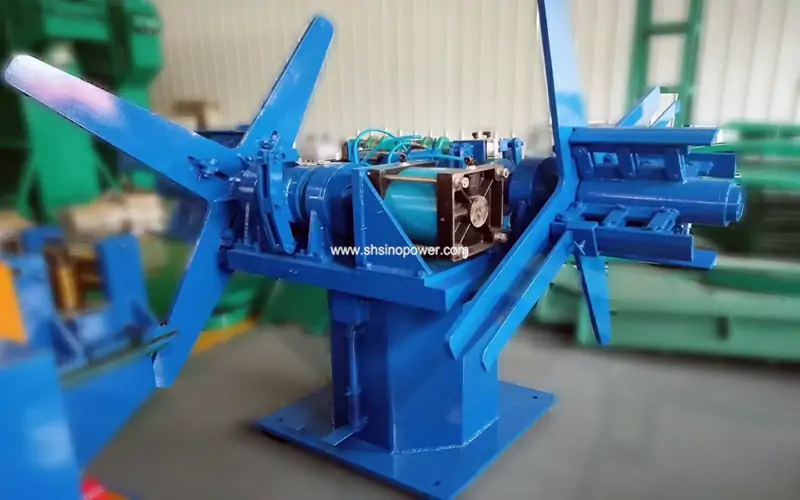

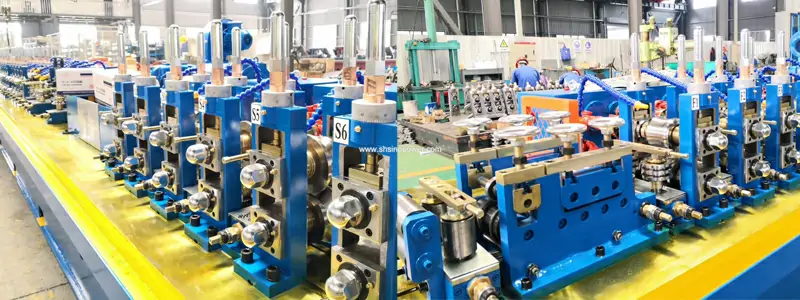

Whole Review

Standard Model List
of steel pipe machine,steel pipe making,pipe machine price

Model	Round Pipe		Square Tube & Rectangle Tube			Speed m/min
Model	Diameter /mm	Thickness /mm	Square Tube /mm	Rectangle Tube /mm	Thickness /mm	Speed m/min
SP16	8 - 25	0.2 - 1.0	10x10 - 20x20	10x12 - 15x25	0.2 - 0.8	20 - 120
SP25	8 - 32	0.3 - 1.3	10x10 - 25x25	10x12 - 20x30	0.3 - 1.0	20 - 120
SP28	8 - 42	0.3 - 1.8	10x10 - 30x30	10x12 - 20x40	0.3 - 1.3	20 - 120
SP32	16 - 50	0.6 - 2.0	12x12 - 40x40	10x14 - 30x50	0.6 - 1.6	20 - 120
SP45	19 - 63	0.6 - 2.5	15x15 - 50x50	15x20- 40x60	0.6 - 2.0	20 - 120
SP50	19 - 76	0.6 - 2.5	15x15 - 60x60	15x20 - 40x80	0.6 - 2.0	20 - 100
SP60	19 - 76	0.6 - 3.0	15x15 - 60x60	15x20 - 40x80	0.6 - 2.5	20 - 100
SP76	25 - 90	1.0 - 4.0	20x20 - 70x70	20x30 - 60x80	1.0 - 3.0	20 - 70
SP90	32 - 114	1.5 - 4.5	25x25 - 90x90	20x30 -80x120	1.5 - 3.5	20 - 60
SP115	38 - 127	2.0 - 5.0	30x30 - 100x100	20x40 - 60x120	2.0 - 4.0	20 - 60
SP165	60 - 165	2.0 - 6.0	45x45 - 130x130	30x60 - 100x150	2.0 - 5.0	15 - 50
SP219	90 - 219	3.0 - 8.0	70x70 - 170x170	100x40 - 200x140	3.0 - 6.0	15 - 50
SP273	127 - 273	4.0 - 10.0	100x100 - 200x200	100x150 - 150x250	4.0 - 8.0	15 - 40
SP355	165 - 355	4.0 - 12.0	130x130 - 270x270	100x160 - 200x340	4.0 - 10.0	15 - 30
