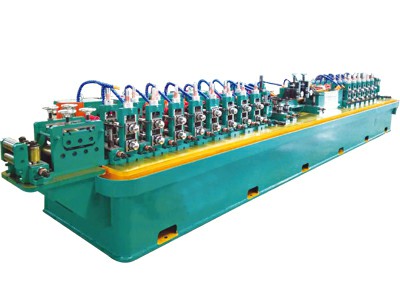

Steel Pipe Making Machine

SP28 Tube Pipe Rolling Machine Price For Sale

Pipe Size:8-42mm
Pipe Thickness:0.3-1.8mm
Production Speed:20-120mm
Pipe Material: Carbon Steel, Galvanized Steel, Mild Steel, Iron etc.
INQUIRY

Pipe Rolling Machine Price / Tube Rolling Machine for Sale

SP28 pipe rolling machine price is for 8-42 mm diameters round tube by 0.3-1.8mm thickness,10x10 - 30x30 mm square tube, 10x12 - 20x40 mm rectangular tube,the thickness is 0.3-1.3m of tube rolling machine for sale.

SP16 pipe rolling machine for sale is a series of tube rolling machine process that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The pipe rolling machine price be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by tube rolling machine for sale be cut to length and bundled.

Technical Parameters

Model		SP16	SP25	SP28
Round Tube	Diameter	8-25 mm	8-32 mm	8-42 mm
Round Tube	Thickness	0.2-1.0 mm	0.3-1.3 mm	0.3-1.8 mm
Square & Rectangle Tube	Max. Square Size	10x10 - 20x20 mm	10x10 - 25x25 mm	10x10 - 30x30 mm
	Max. Rectangle Size	10x12 - 15x25 mm	10x12 - 20x30 mm	10x12 - 20x40 mm
	Thickness	0.2-0.8 mm	0.3-1.0 mm	0.3-1.3 mm
Speed		20-120 m/min	20-120 m/min	20-120 m/min
Major Motor Power		37 KW	45 KW	90 KW
High Frequency Power		100 KW	100 KW	150 KW

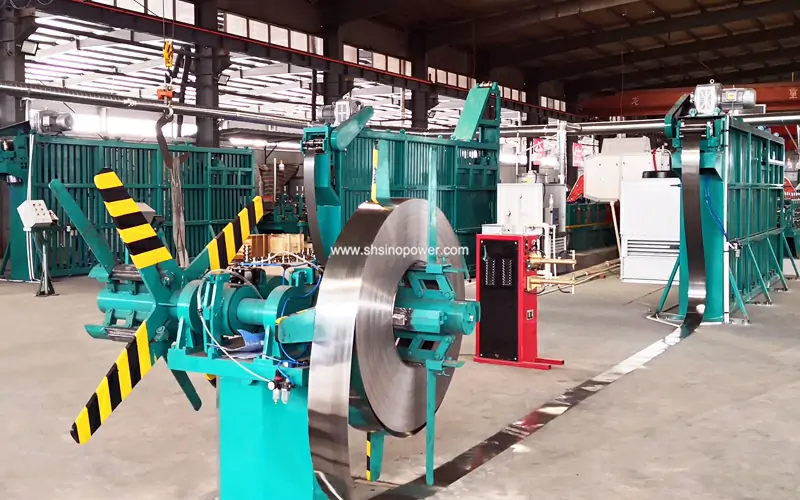

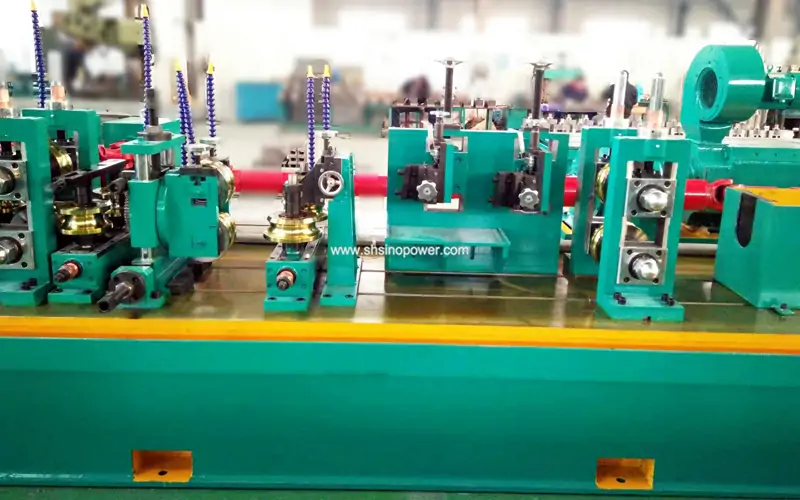

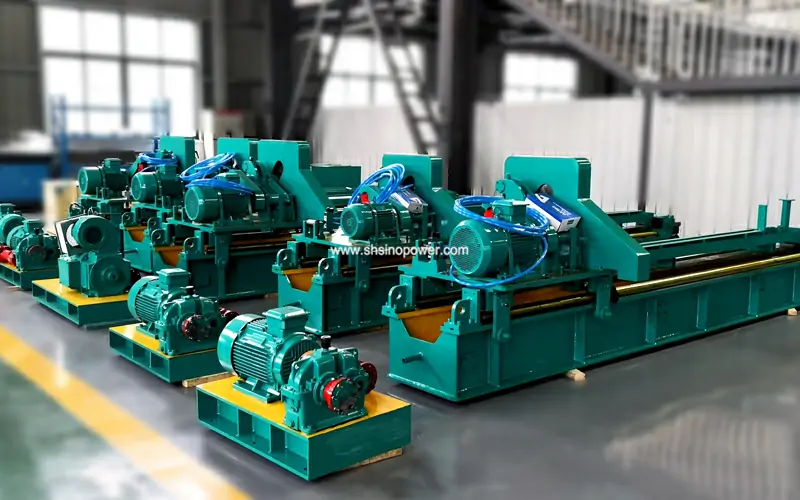

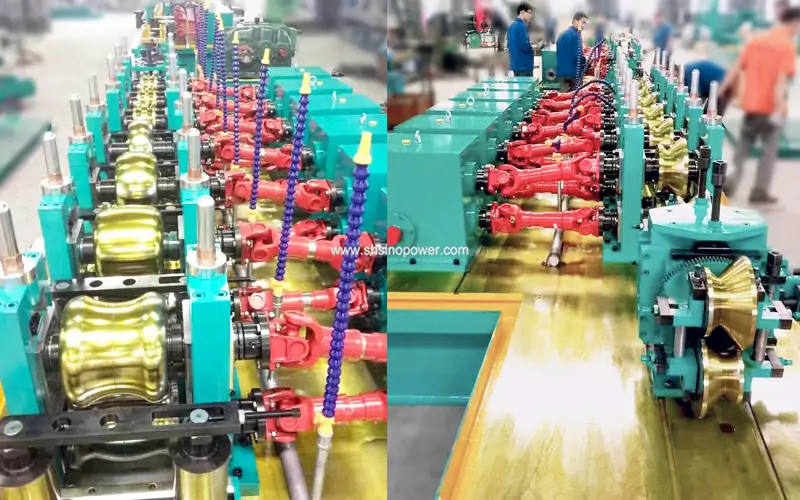

Pipe Rolling Machine for Sale Process

Final Pipes

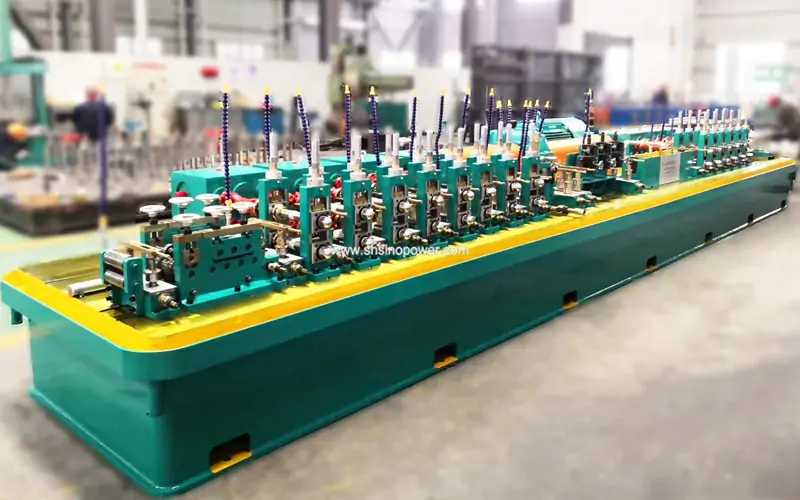

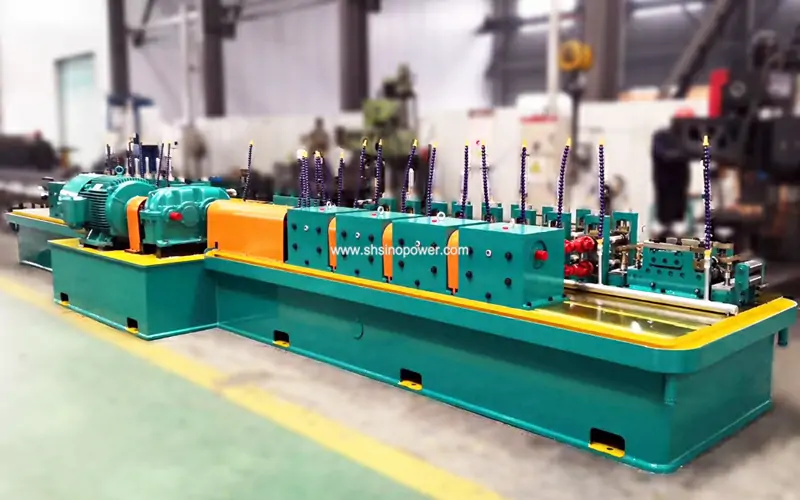

Whole Review

Standard Model List
of pipe rolling machine price,pipe rolling machine for sale,tube rolling machine for sale

Model	Round Pipe		Square Tube & Rectangle Tube			Speed m/min
Model	Diameter /mm	Thickness /mm	Square Tube /mm	Rectangle Tube /mm	Thickness /mm	Speed m/min
SP16	8 - 25	0.2 - 1.0	10x10 - 20x20	10x12 - 15x25	0.2 - 0.8	20 - 120
SP25	8 - 32	0.3 - 1.3	10x10 - 25x25	10x12 - 20x30	0.3 - 1.0	20 - 120
SP28	8 - 42	0.3 - 1.8	10x10 - 30x30	10x12 - 20x40	0.3 - 1.3	20 - 120
SP32	16 - 50	0.6 - 2.0	12x12 - 40x40	10x14 - 30x50	0.6 - 1.6	20 - 120
SP45	19 - 63	0.6 - 2.5	15x15 - 50x50	15x20- 40x60	0.6 - 2.0	20 - 120
SP50	19 - 76	0.6 - 2.5	15x15 - 60x60	15x20 - 40x80	0.6 - 2.0	20 - 100
SP60	19 - 76	0.6 - 3.0	15x15 - 60x60	15x20 - 40x80	0.6 - 2.5	20 - 100
SP76	25 - 90	1.0 - 4.0	20x20 - 70x70	20x30 - 60x80	1.0 - 3.0	20 - 70
SP90	32 - 114	1.5 - 4.5	25x25 - 90x90	20x30 -80x120	1.5 - 3.5	20 - 60
SP115	38 - 127	2.0 - 5.0	30x30 - 100x100	20x40 - 60x120	2.0 - 4.0	20 - 60
SP165	60 - 165	2.0 - 6.0	45x45 - 130x130	30x60 - 100x150	2.0 - 5.0	15 - 50
SP219	90 - 219	3.0 - 8.0	70x70 - 170x170	100x40 - 200x140	3.0 - 6.0	15 - 50
SP273	127 - 273	4.0 - 10.0	100x100 - 200x200	100x150 - 150x250	4.0 - 8.0	15 - 40
SP355	165 - 355	4.0 - 12.0	130x130 - 270x270	100x160 - 200x340	4.0 - 10.0	15 - 30
