  • SP219 erw pipe manufacturing machine companies
SP219 erw pipe manufacturing machine companies

SP219 erw pipe manufacturing machine companies

  • Pipe size:90-219mm
  • Pipe thickness:3.0-8.0mm
  • Productin speed:20-50m/min
  • Pipe material: carbon steel, Stainless steel
  • Product description: SP219 (diameters 90-219 mm) erw pipe manufacturing machine companies is for 90-219 mm diameters round tube,165x165mm square tube or 140x200mm rectangular tube,the thickness is 3.0-8.0mm based pipe man
  • INQUIRY

SP219(90-219 mm)  erw pipe manufacturing machine companies is a series of tube machines that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. Then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The pipe manufacturing companies be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled.

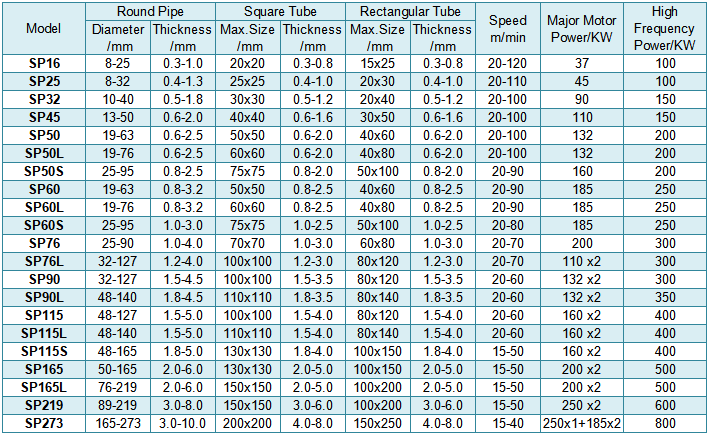

1. Parameters of pipe manufacturing machine

Model Unit SP165 SP219 SP273
Diameter of Welded Tubes mm 76-165 90-219 165-273
Size of Square Tube (Max.) mm 127x127 165x165 210x210
Size of Rectangle Tube (Max.) mm 100x150 140x200 180x240
Wall Thickness of Round Tube mm 2.0-6.0 3.0-8.0 4.0-10.0
Wall Thickness of Square  Tube mm 2.0-5.0 3.0-6.0 4.0-8.0
Wall Thickness of Rectangle Tube mm 2.0-5.0 3.0-6.0 4.0-8.0
Speed of Tube Welding m/min 15-50 15-50 15-40
Power of Major Motor KW 200 x2 250 x2 250 x1
185 x2
High Frequency Power KW 500 600 800

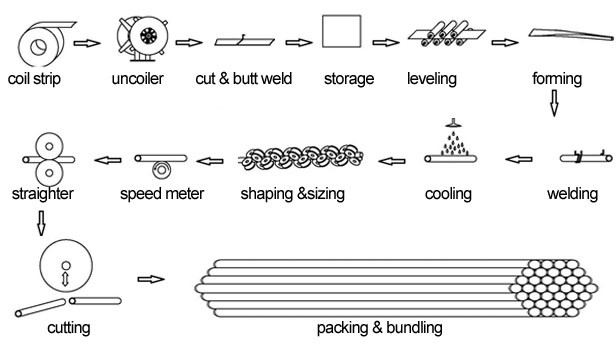

2. Process flow of pipe manufacturing companies

pipe making machine, pipe welding machine

Step 1: Uncoiler

Function: support rolled plate and strip tension for pipe manufacturing companies, by the frame, main shaft, increases of drum, brake.

There are 3 types: pneumatic, hydraulic and manual.

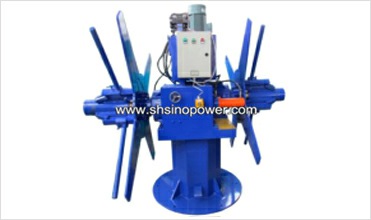

decoiler uncoiler unwinding of erw pipe mill

Step 2: Shear & Butt-welding

Function: Shear the end of each strip coil, then welding them together, so that erw pipe manufacturing machine can be continue production.

2 Types: Automatic & Manual

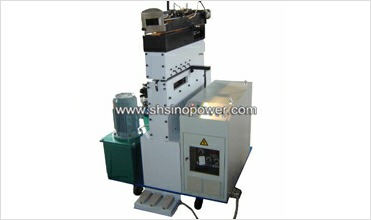

head shear and welder for pipe making machine

Step 3: Strip Accumulator

Function: storage strip to keep continue production.
2 Types: Horizontal / Vertical

Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.

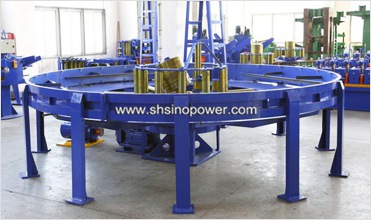

vertical accumulator horizontal accumulator

Step 4: Forming Section

Function: forming the tube from strip
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box

>Siemens Beide motor

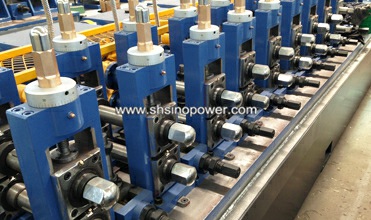

forming section of steel pipe mill

Step 5: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the HF pipe manufacturing companies welder

Our advantage: We choose the China best welder: Sanyi brand.

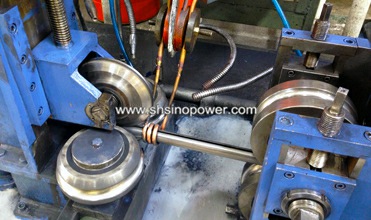

high frequency welding station for steel pipe machine

Step 6: Sizing Section

Function: sizing the tube to precise size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor

>High precision, low error of the pipe size

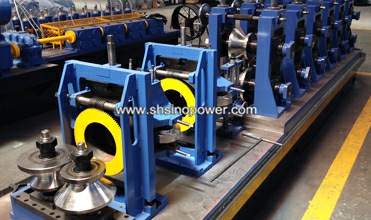

sizing parts for erw tube mill

Step 7: Flying saw / Cold Saw

Function: cutting the pipe manufacturing companies tube to right length.
Fly saw: easy to operation, low investment.

Cold saw: no noise, no burr cutting precision and cross section.

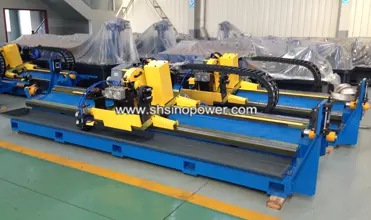

fly saw cold saw and cutting saw

Step 8: Run Out Table.

Function: run out the pipe, packing the pipe for erw pipe manufacturing companies

Type: Automatic or manual

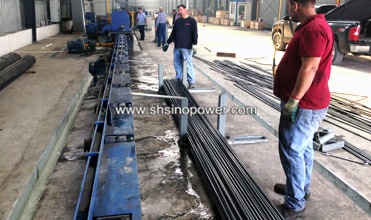

run out table for tube making machine package


3. Applications of pipe manufacturing companies

1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
2. Heating Pipe 8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
5. Sewage Pipes 11. Water Pipe
6. Steel Scaffolding Pipe 12. Building pipe

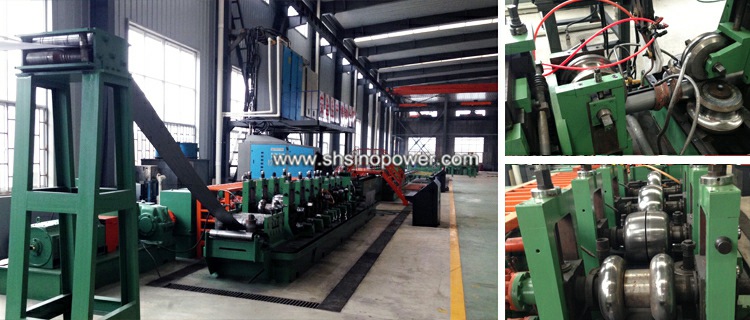

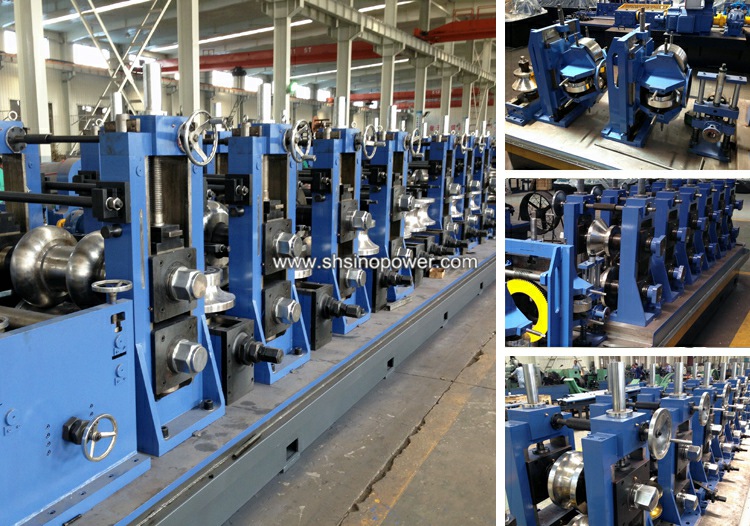

4. Photos of erw pipe manufacturing machine

pipe machine,pipe machine price,steel pipe making machine,pipe making machine price,

steel pipe manufacturing machine,steel pipe manufacturing process,steel pipe machine,

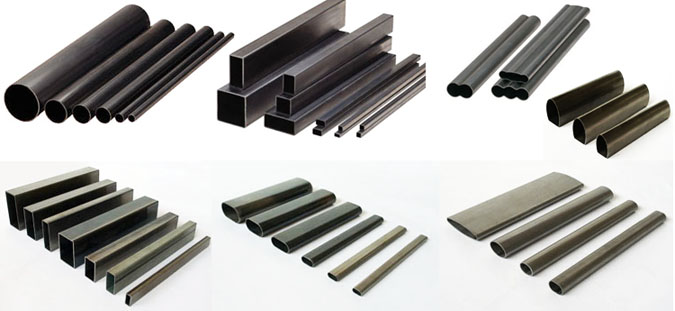

5. Final product of erw pipe manufacturing machine

Material:  carbon steel, galvanized steel pipe, mild steel, iron, black steel, ms steel, etc.

welding pipe welded tube

6. Whole series of pipe manufacturing companies

Options of pipe manufacturing companies and erw pipe manufacturing machine.

steel square pipe making machine,erw pipe making machine
